ALUMINUM TENDERS

World-renowned, innovative design created to fit your needs.

Lammina is the first line of marine-grade, aluminum-hull inflatables to reach the U.S. market. The Superlight models, available in lengths 9,5 feet and under, feature a 2,28mm (0.090”) aluminum hull. The rest of the line, available in lengths 10 feet and larger, sports a 3,17mm (0.125”) aluminum hull. The transom thickness on models 8 to 10 feet is 3,17mm (0.125”) and from models 11 to 16 feet is 4,7mm (0.190”). These tough, lightweight and durable aluminum hulls will resist abrasions from rocky shores, coral and sandy beaches. The innovative design of the Lammina series cuts through wakes and chop with far less pounding. The result is an exceptionally dry, stable and superior ride.

GALLERY
KEY FEATURES
SPECS
EQUIPMENTS
Lammina 14 AL

KEY FEATURES

  • Ventilation on Bow Locker
  • Large Square Transom Alum. Reinforced Base
  • More Payload Capacity
  • More Internal Area
  • Optional B.Locker - 6 Gal portable F. tank
  • Optional Aluminum Removable Rowing Seat
  • New Chrome Free - Advanced Pretreatment and Powder Coating Technology
  • Ultra High Quality Welding
  • Bow U bolt and lateral towing eyes
  • Double Solid Rubrail
  • New Heavy Duty Keel Protector
  • "V" Hull
  • ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Dinghy Chap Available
  • Sunbrella Fabric Boat Cover Available
  • Reinforced Alum. Lifting Eyes with SS Rings
  • Reinforced (CSM) Fabric Handles
  • Non-skid Rubber Floor
  • Reinforced Alum. Transom Towing Eyes w/ SS Rings
  • Reinforced Alum. Transom Tie Downs w/ SS Rings
  • Custom Colors Upon Request

SPECS

Overall length

14' / 4.27m

Overall Beam

6’7’’ / 2,00m

Inside Length

10' 10" / 3.30m

Inside Beam

3'3" / 0.99m

Tube Diameter

19" / 0.48m

Number of Chambers

4

Person Capacity

8

Weight

246lb / 112kg

Weight with Bow Locker

264lb / 120kg

Recommended HP

40 hp / 29.8 kw

Maximum HP

50 hp / 37.3 kw

Shaft length

20" / 50.8 cm



RDC Design Category

C

STANDARD EQUIPMENT

Deep “V” Marine Grade Aluminum Hull
Heavy Duty Transom Knee
Stringer System Welded Under Aluminum Deck
Non-Skid Rubber Floor Panels
Plastic External Transom Plate
Aluminum Internal Transom Plate
Aluminum Bow Eye
3-4 Aluminum Davit Lifting Points
Aluminum Transom Tie Down & Towing Rings
Aluminum Bow Tie Down & Towing Rings
Deck Drain with Plug
Orca (CSM) Five Layer Coated Fabric
Raised Double Rub Rail
Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
1 Front & 4 Side Orca (CSM) Fabric Handles on Tubes
2 Inside Bow Sets of Triple Orca (CSM) Fabric Handles on Tubes
2 Inside Stern Double Orca (CSM) Fabric Handles on Tubes
Paddles with Aluminum Shaft
Paddle Holders
Hand Pump
Maintenance Kit
Owner's Manual
3 Layers Reinforced Seams
Rubber Protector on Full Length of Keel

OPTIONAL EQUIPMENT

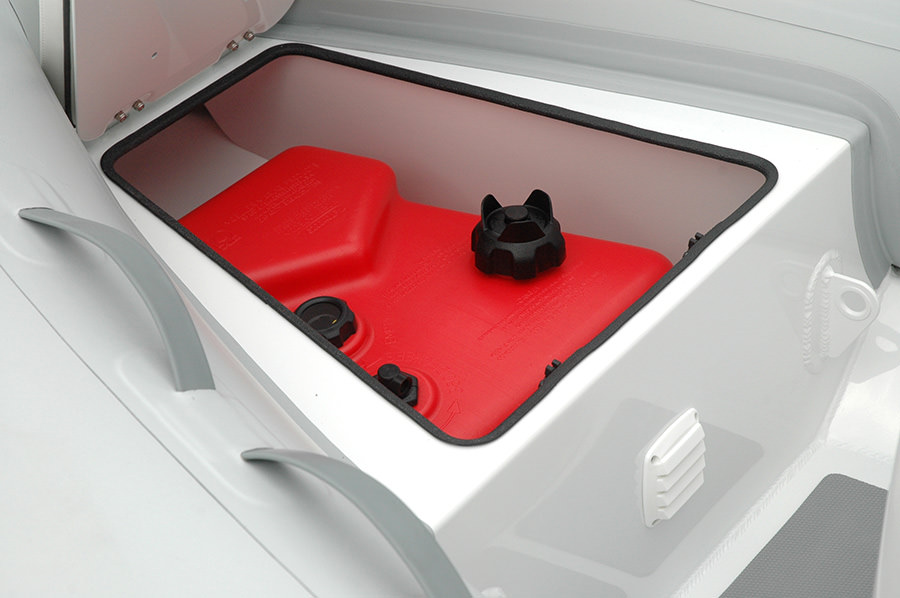

Bow Locker/Seat with Vent & Storage to Fit a 6 Gal Portable Fuel Tank
Portable 6 gal Fuel Tank Installed in Bow Locker with Fittings
Tube Chaps
Boat Cover
Chock Set
Bow Step with Fold Down Stainless Steel Cleat
Lateral Fold Down Stainless Steel Cleat
Fiberglass Console
Fiberglass Console with Forward Seat
Bench Seat with Storage
One Person Jockey Seat
Two Person Jockey Seat
Stainless Steel Helm Unit
