LIGHTWEIGHT FIBERGLASS TENDERS

Lightweight, full-length fiberglass deep-V RIB, designed for extra space, durability and performance.

Ventus – Latin for “air”– is our line of lightweight tenders. With their low weight to length ratio and balanced design, Ventus boats require very little horsepower to achieve astonishing performance and speeds. They sport a full V-shape hull that runs the entire length of the boat, providing exceptional tracking and stability. Ventus models are the only lightweight boats on the market with an additional air chamber built into the hull. This air chamber makes the Ventus line extremely safe and reliable, while providing a level non-skid floor to keep your cargo and passengers dry. Ventus boats make ideal tenders with plenty of room for carrying crew and provisions.

GALLERY
KEY FEATURES
SPECS
EQUIPMENTS
Ventus 10 VL

KEY FEATURES

  • Lightweight Fiberglass Tender
  • More Payload capacity
  • Solid Rubrail
  • "V" Hull
  • Aluminum Removable Rowing Seat
  • More Internal Area
  • ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Dinghy Chap Available
  • Sunbrella Fabric Boat Cover Available
  • Internal Aluminum Plate with Security Lip
  • Reinforced (CSM) Fabric Handles
  • Custom Colors Upon Request

SPECS

Overall length

10' 6" / 3,19m

Overall Beam

5' 7" / 1,72m

Inside Length

7' 7" / 2,31m

Inside Beam

2' 8" / 0,81m

Tube Diameter

17" / 0,43m

Number of Chambers

3+1

Person Capacity

5

Weight

123lbs / 56kg

Recommended HP

15hp / 11,2kw

Maximum HP

25hp / 18,7kw

Shaft length

15" / 38,1cm

RDC Design Category

C

STANDARD EQUIPMENT

Hand Laid Fiberglass Deep “V” Hull
Stringer System Laminated into Hull
Non-Skid Rubber Floor Panels
Plastic External Transom Plate
Aluminum Internal Transom Plate with Security Lip
Stainless Steel Bow Eye
3 Stainless Steel Davit Lifting Points
Inner Hull Drain with Plug
Deck Condensation Plug
Orca (CSM) Five Layer Coated Fabric
Raised Single Rub Rail
Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
2 Inside Bow Sets of 2 Orca (CSM) Fabric Handles on Tubes
2 Inside Stern Set of 2 Orca (CSM) Fabric Handles on Tubes
Removable Rowing Seat
Oarlock Base
Telescopic Oars with Aluminum Shaft
Paddle Holders
Hand Pump
Maintenance Kit
Owner's Manual
Additional Air Retaining Chamber Under the Floor
3 Layers Reinforced Seams

OPTIONAL EQUIPMENT

Tube Chaps
Boat Cover
Chock Set

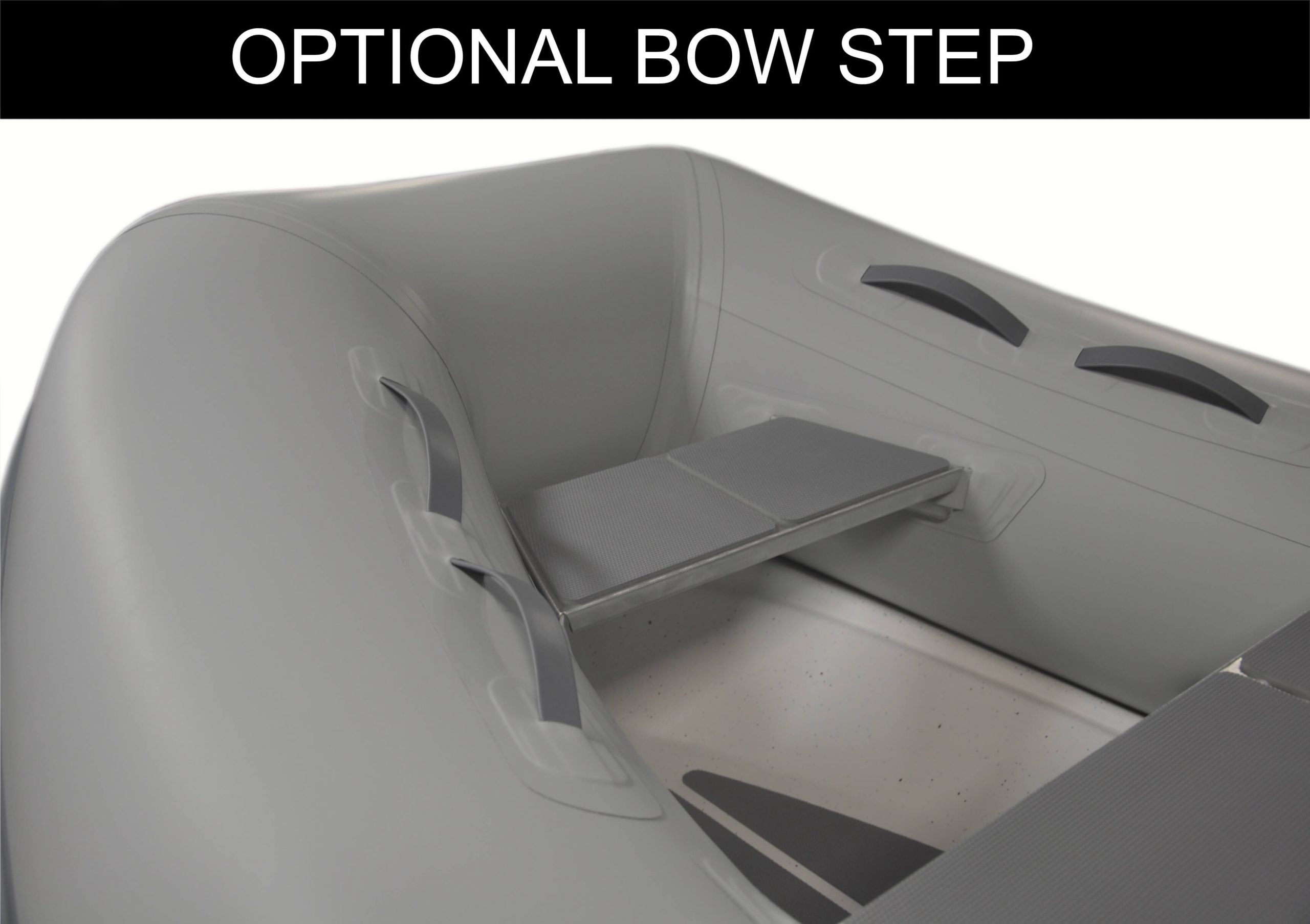

Bow Step with Fold Down Stainless Steel Cleat
Lateral Fold Down Stainless Steel Cleat
Removable Stern Seat
