OPEN FIBERGLASS TENDERS

The most spacious fiberglass RIB on the market, easily customizable to fit your every need.

The Navigo series is our premier line of open tenders. Hand crafted with careful consideration to every detail, these boats are designed for maximum performance, comfort, and durability. The Navigo series features AB’s unique forward-hull design, making them the most spacious tenders on the market. In addition, all Navigo models are equipped with all the amenities sought by serious boaters, including: a large bow locker with seating, diamond pattern non-skid fiberglass deck, a double rub rail, four davit lifting rings, heavy-duty rubber carry handles, and much more. The raised bow and large-diameter tubes provide for the driest and most comfortable ride of any open tender on the market. The Navigo line will impress even the most discriminating boater.

GALLERY
KEY FEATURES
SPECS
EQUIPMENTS
Navigo 12 VS

KEY FEATURES

  • Bow Locker with Storage (15" Shaft version to Fit a 6 Gal Portable Fuel Tank)
  • "V" Hull
  • Double Solid Rubrail
  • Aluminum Removable Rowing Seat
  • More Payload capacity
  • Diamond Shape Non-skid deck
  • ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Dinghy Chap Available
  • Sunbrella Fabric Boat Cover Available
  • Internal Aluminum Plate with Security Lip
  • Transom Towing & Tie Down SS Rings
  • Reinforced (CSM) Fabric Handles
  • Custom Colors Upon Request

SPECS

Overall length

12' / 3,66m

Overall Beam

6’ / 1.82m

Inside Length

8' 9" / 2,67m

Inside Beam

2' 9" / 0,84m

Tube Diameter

18" / 0,46m

Number of Chambers

3+1

Person Capacity

6

Weight

202lbs / 92kg

Recommended HP

20hp / 14,9kw

Maximum HP

30hp / 22,4kw

Shaft length

15" / 38,1cm - 20" / 50,8cm

RDC Design Category

C

STANDARD EQUIPMENT

Hand Laid Fiberglass Deep “V” Hull
Stringer System Laminated into Hull

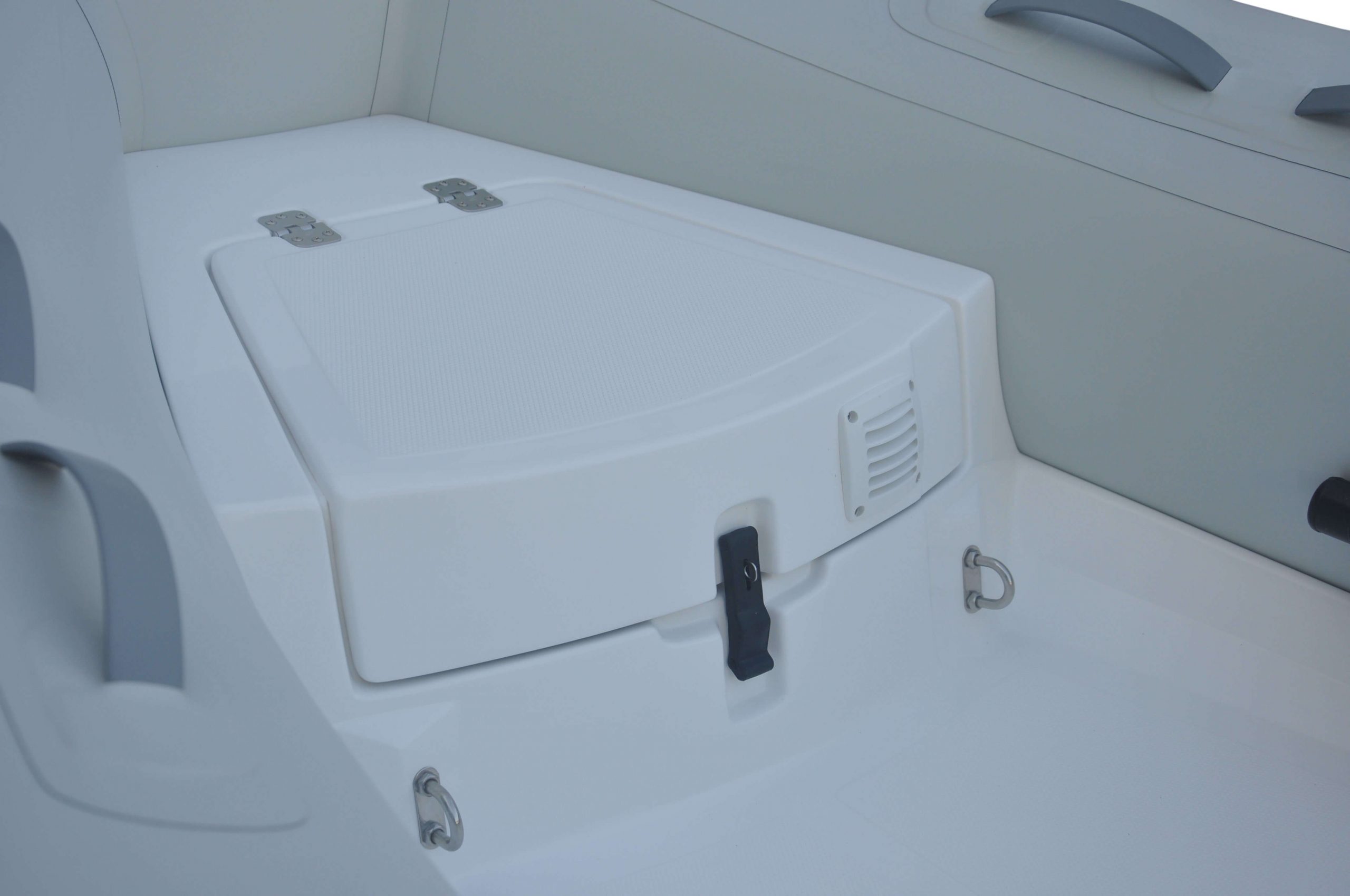

Bow Locker/Seat with Vent
Bow Locker with Storage (15" Shaft version to Fit a 6 Gal Portable Fuel Tank)
Diamond Shape Non-Skid Deck
Plastic External Transom Plate
Aluminum Internal Transom Plate with Security Lip
Orca (CSM) Five Layer Coated Fabric
3 Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
Raised Double Rub Rail
Stainless Steel Bow Eye
4 Stainless Steel Davit Lifting Points
Stainless Steel Tow Rings & Tie Downs
Deck Condensation Plug
Deck Drain with Plug
1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
2 Inside Bow Sets of 2 Orca (CSM) Fabric Handles on Tubes
2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes
3 Layers Reinforced Seams
Paddles with Aluminum Shaft
Paddle Holders
Removable Rowing Seat
Hand Pump
Maintenance Kit
Owner's Manual
Additional Air Retaining Chamber Under the Floor

OPTIONAL EQUIPMENT

Portable 6 gal Fuel Tank Installed in Bow Locker with Fittings (Only for 15" Shaft Version)
Bow Hatch Cushion
Tube Chaps
Boat Cover
Chock Set
Bow Step with Fold Down Stainless Steel Cleat
Lateral Fold Down Stainless Steel Cleat
Removable Stern Seat
Bimini Top
Fiberglass Console
Fiberglass Console with Forward Seat
Bench Seat with Storage
Two Person Jockey Seat
Stainless Steel Helm Unit
