Navigo
10 VS
OPEN FIBERGLASS TENDERS
The most spacious fiberglass RIB on the market, easily customizable to fit your every need.
The Navigo series is our premier line of open tenders. Hand crafted with careful consideration to every detail, these boats are designed for maximum performance, comfort, and durability. The Navigo series features AB’s unique forward-hull design, making them the most spacious tenders on the market. In addition, all Navigo models are equipped with all the amenities sought by serious boaters, including: a large bow locker with seating, diamond pattern non-skid fiberglass deck, a double rub rail, four davit lifting rings, heavy-duty rubber carry handles, and much more. The raised bow and large-diameter tubes provide for the driest and most comfortable ride of any open tender on the market. The Navigo line will impress even the most discriminating boater.

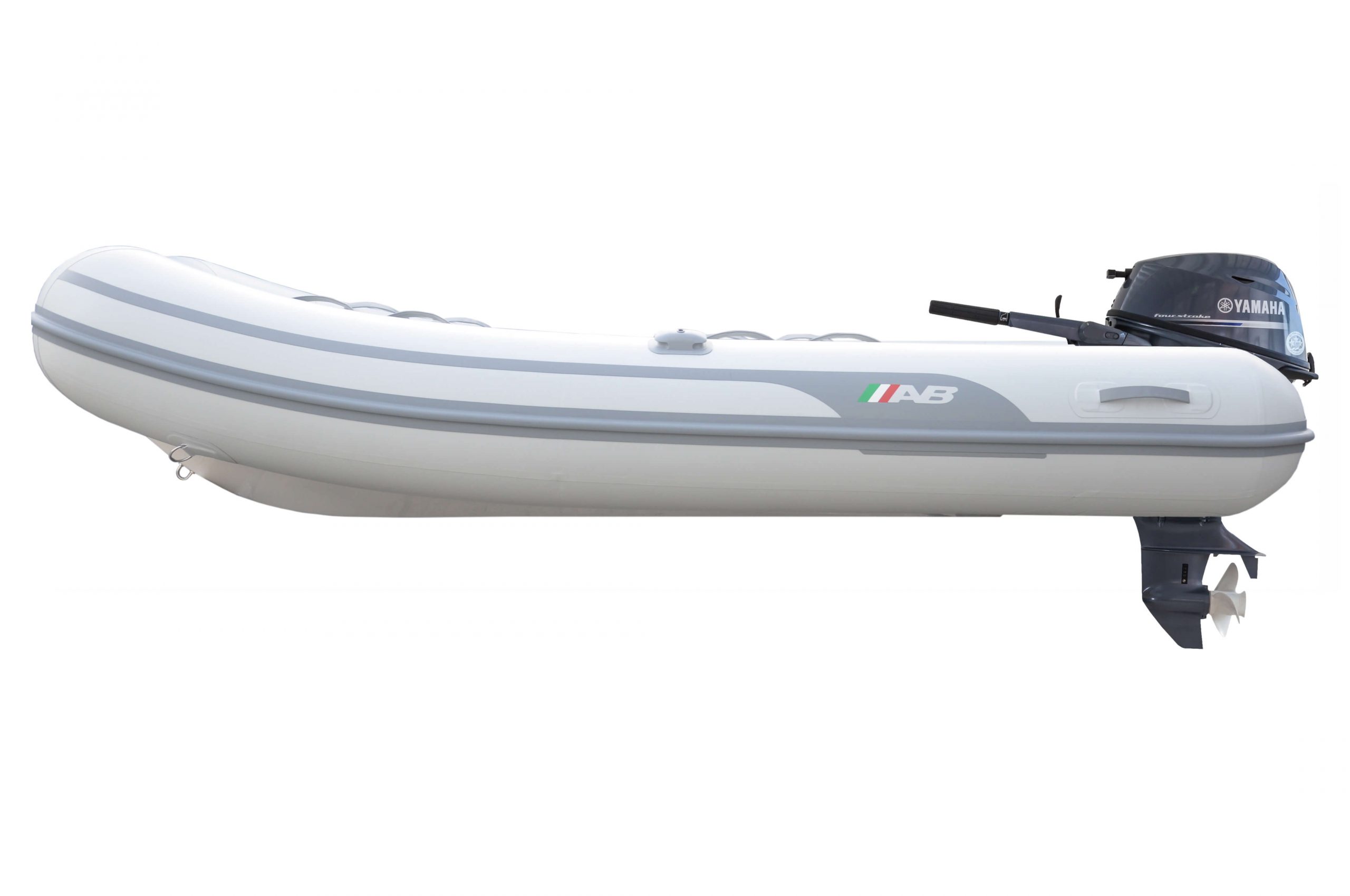

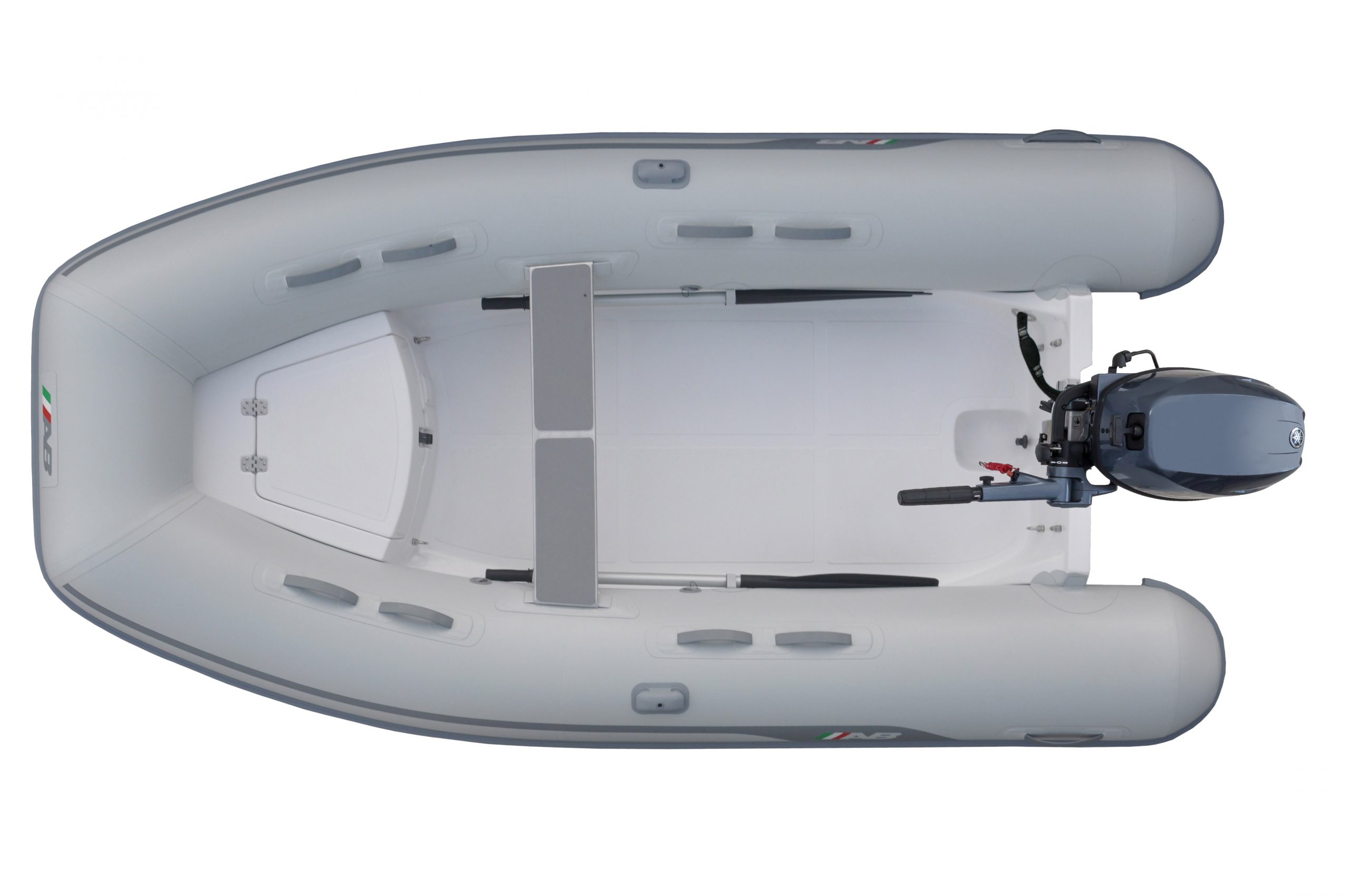

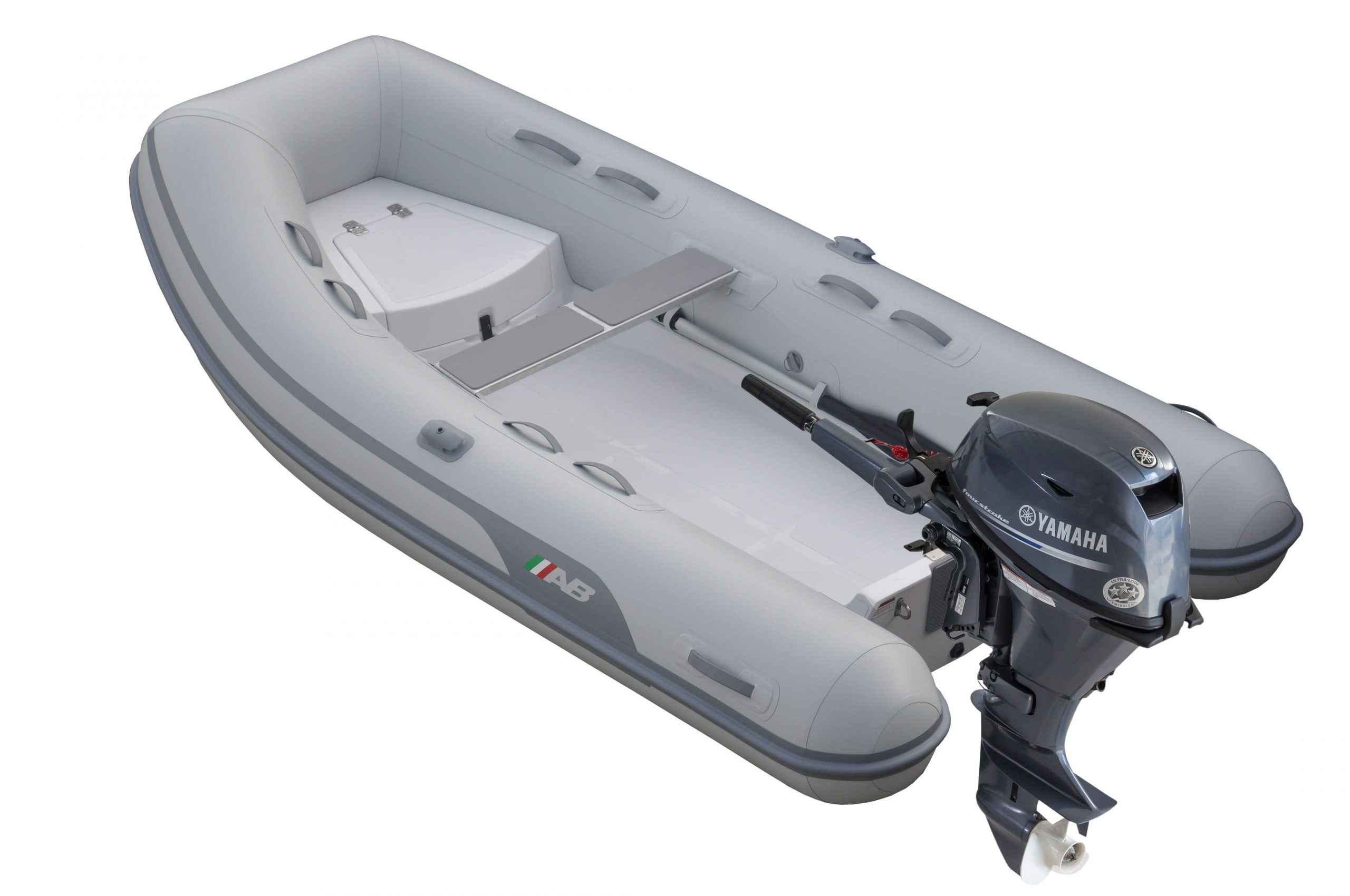

NAVIGO 10 VS GALLERY
KEY FEATURES

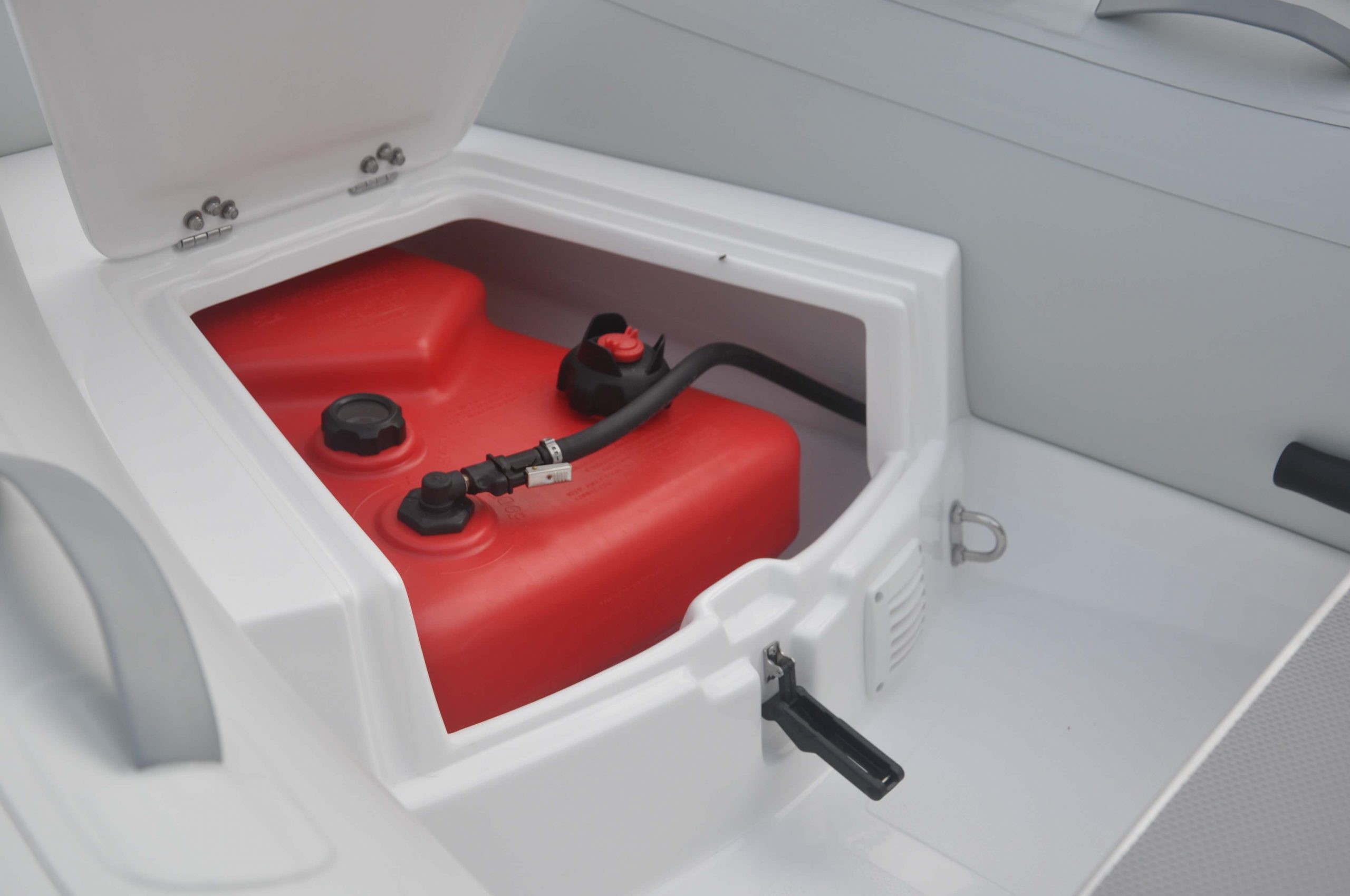

- Bow Locker with Storage to Fit a 6 Gal Portable Fuel Tank
- "V" Hull
- Double Solid Rubrail
- Aluminum Removable Rowing Seat
- More Payload capacity
- Diamond Shape Non-skid deck
- ORCA (CSM) Coated Fabric
- Sunbrella Fabric Dinghy Chap Available
- Sunbrella Fabric Boat Cover Available
- Internal Aluminum Plate with Security Lip
- Bow Locker
- Transom Towing & Tie Down SS Rings
- Reinforced (CSM) Fabric Handles
- Custom Colors Upon Request
SPECS
Overall length
10' 6" / 3,19m
Overall Beam
5' 7" / 1,72m
Inside Length
7' 7" / 2,31m
Inside Beam
2' 8" / 0,81m
Tube Diameter
17" / 0,43m
Number of Chambers
3+1
Person Capacity
5
Weight
169lbs / 77kg
Recommended HP
15hp / 11,2kw
Maximum HP
25hp / 18,7kw
Shaft length
15" / 38,1cm
RDC Design Category
C
STANDARD EQUIPMENT
Hand Laid Fiberglass Deep “V” HullStringer System Laminated into Hull
Bow Locker/Seat with Vent
Bow Locker with Storage to Fit a 6 Gal Portable Fuel Tank

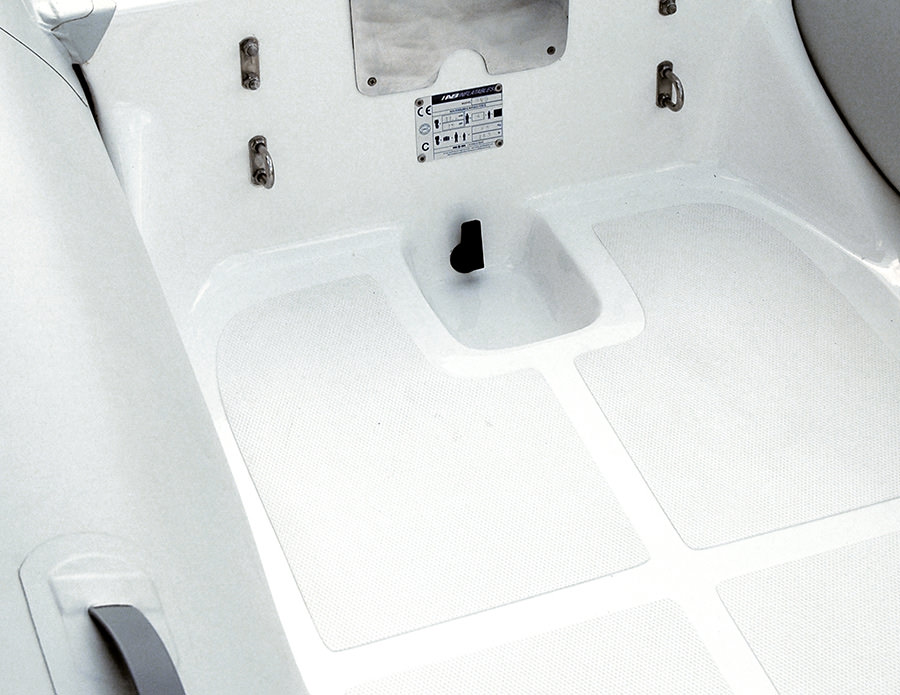

Diamond Shape Non-Skid Deck
Plastic External Transom Plate
Aluminum Internal Transom Plate with Security Lip
Orca (CSM) Five Layer Coated Fabric
3 Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
Raised Double Rub Rail
Stainless Steel Bow Eye
4 Stainless Steel Davit Lifting Points
Stainless Steel Tow Rings & Tie Downs
Deck Condensation Plug
Deck Drain with Plug
1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
2 Inside Bow Sets of 2 Orca (CSM) Fabric Handles on Tubes
2 Inside Stern Double Orca (CSM) Fabric Handles on Tubes
3 Layers Reinforced Seams
Oarlock Base
Telescopic Oars with Aluminum Shaft
Paddle Holders
Removable Rowing Seat
Hand Pump
Maintenance Kit
Owner's Manual
Additional Air Retaining Chamber Under the Floor
OPTIONAL EQUIPMENT
Portable 6 gal Fuel Tank Installed in Bow Locker with FittingsBow Hatch Cushion
Tube Chaps
Boat Cover
Chock Set
Bow Step with Fold Down Stainless Steel Cleat
Lateral Fold Down Stainless Steel Cleat
Removable Stern Seat
Bimini Top
Fiberglass Console
Bench Seat with Storage
Two Person Jockey Seat
Stainless Steel Helm Unit
