LUXURY CONSOLE TENDERS

A perfect blend of thoughtful design, top-of-the-line features and elegant craftmanship.

Beautifully crafted with elegant lines and painstaking attention to detail, the Nautilus series is our premier line of luxury tenders. The Nautilus line was created with the discerning yachtsman in mind. Its superior design is a reflection of the exceptional performance, comfort, and style sought by our most demanding customers. Each Nautilus model is meticulously hand crafted using only the finest materials, and richly appointed with an impressive array of amenities. The Nautilus series offers outstanding maneuverability, making these boats a pleasure to pilot whether in open water or high-traffic harbors. Nautilus models are the tenders of choice for yacht owners and captains who will accept only the best.

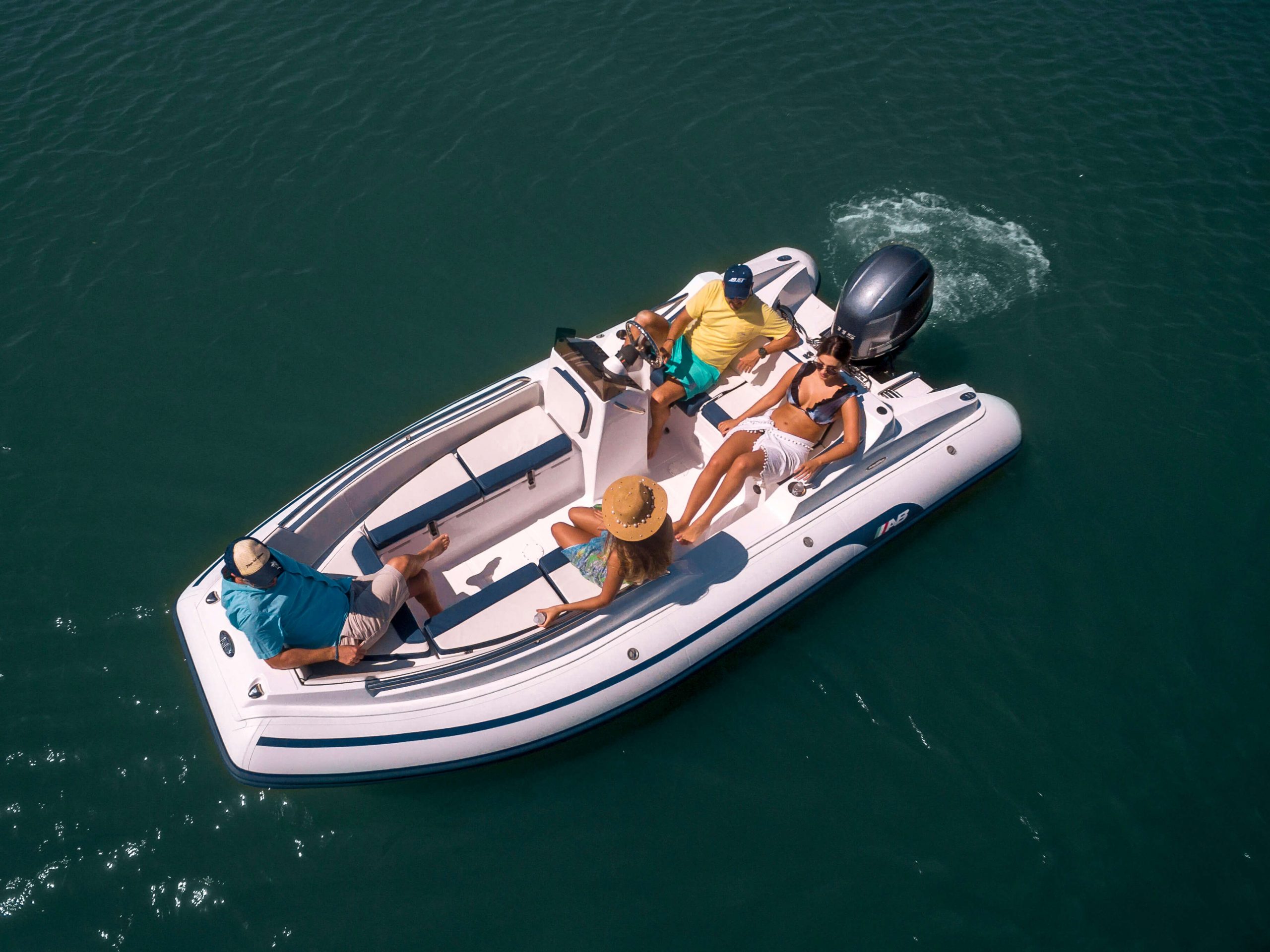

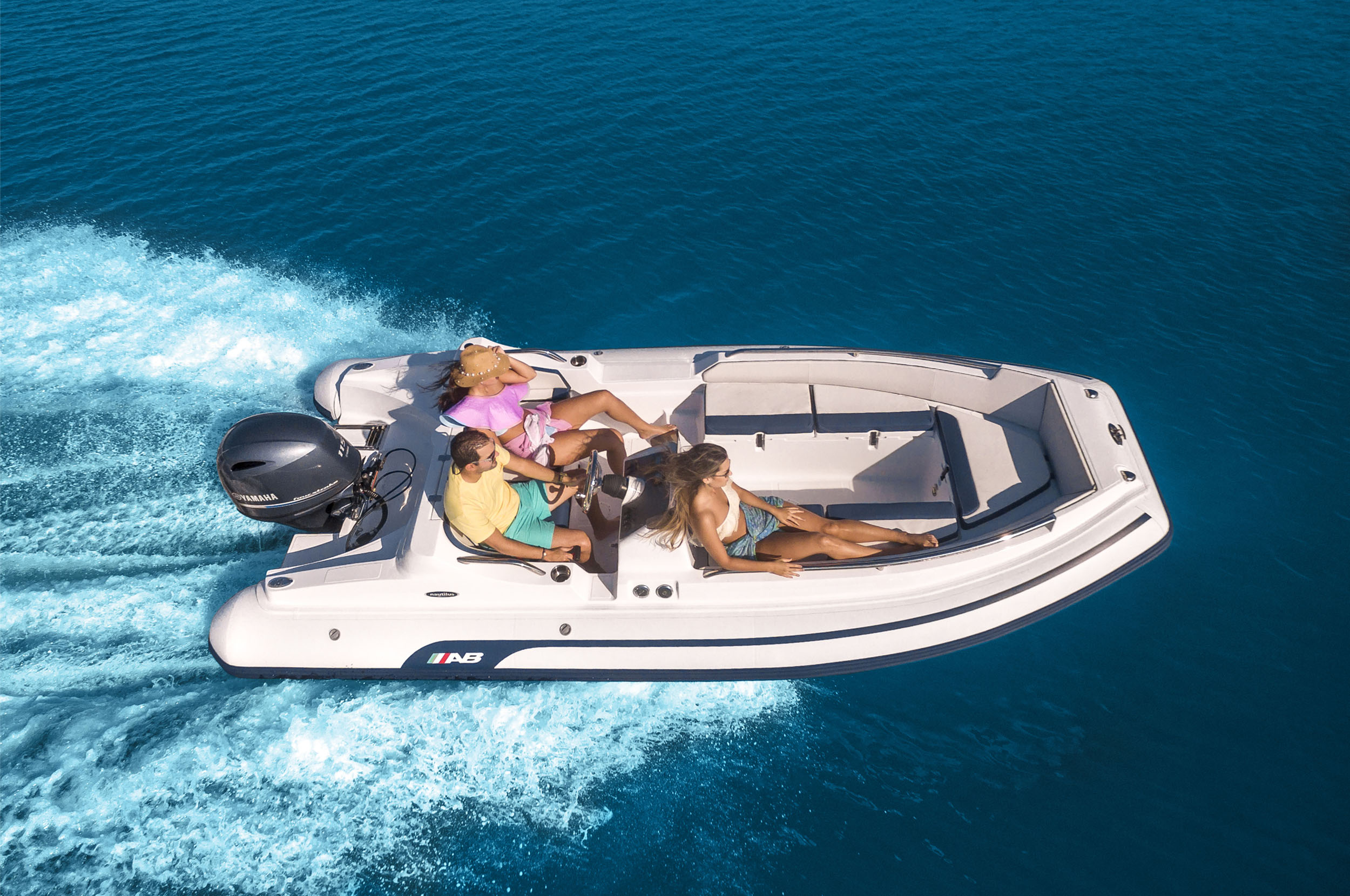

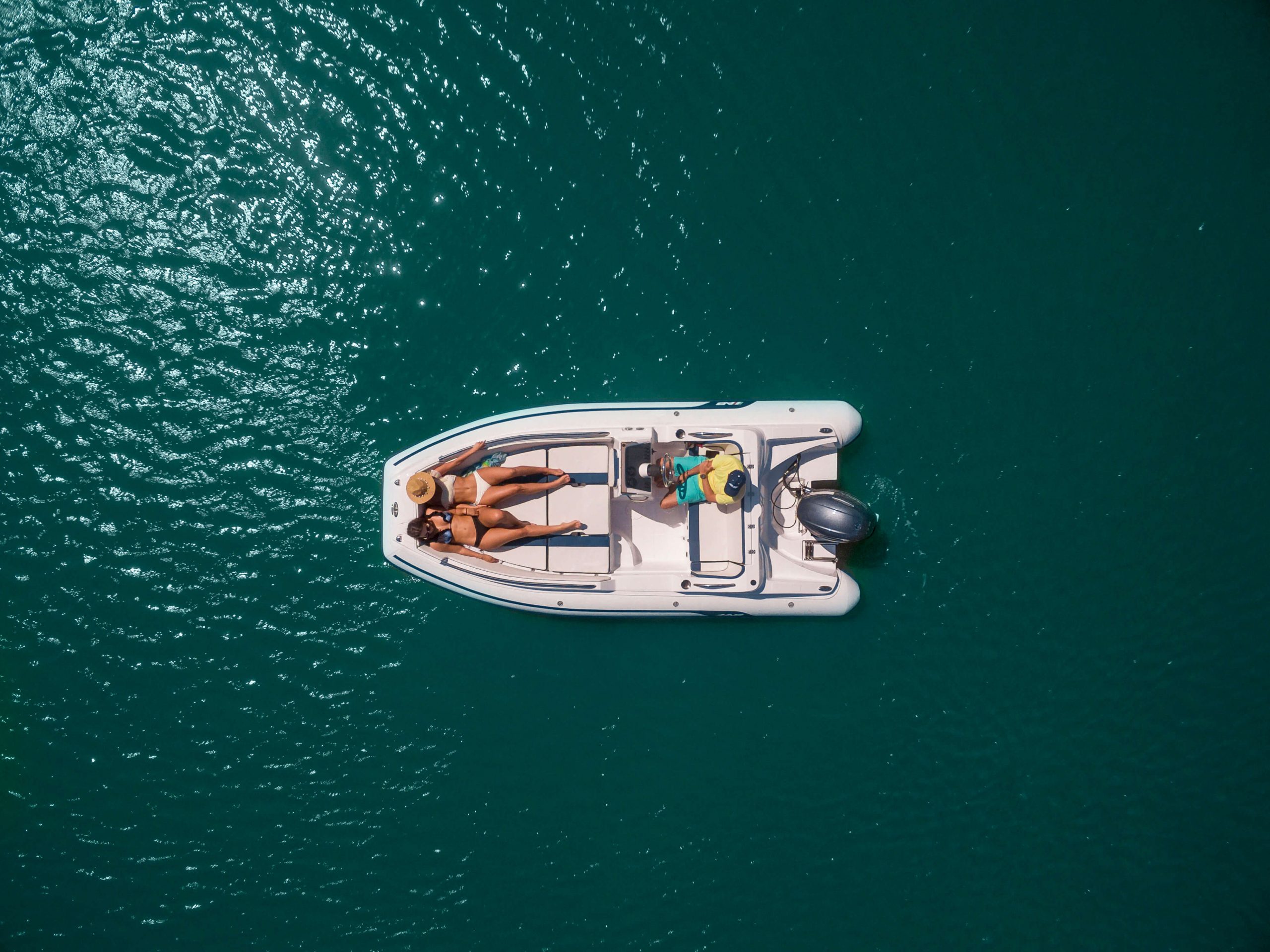

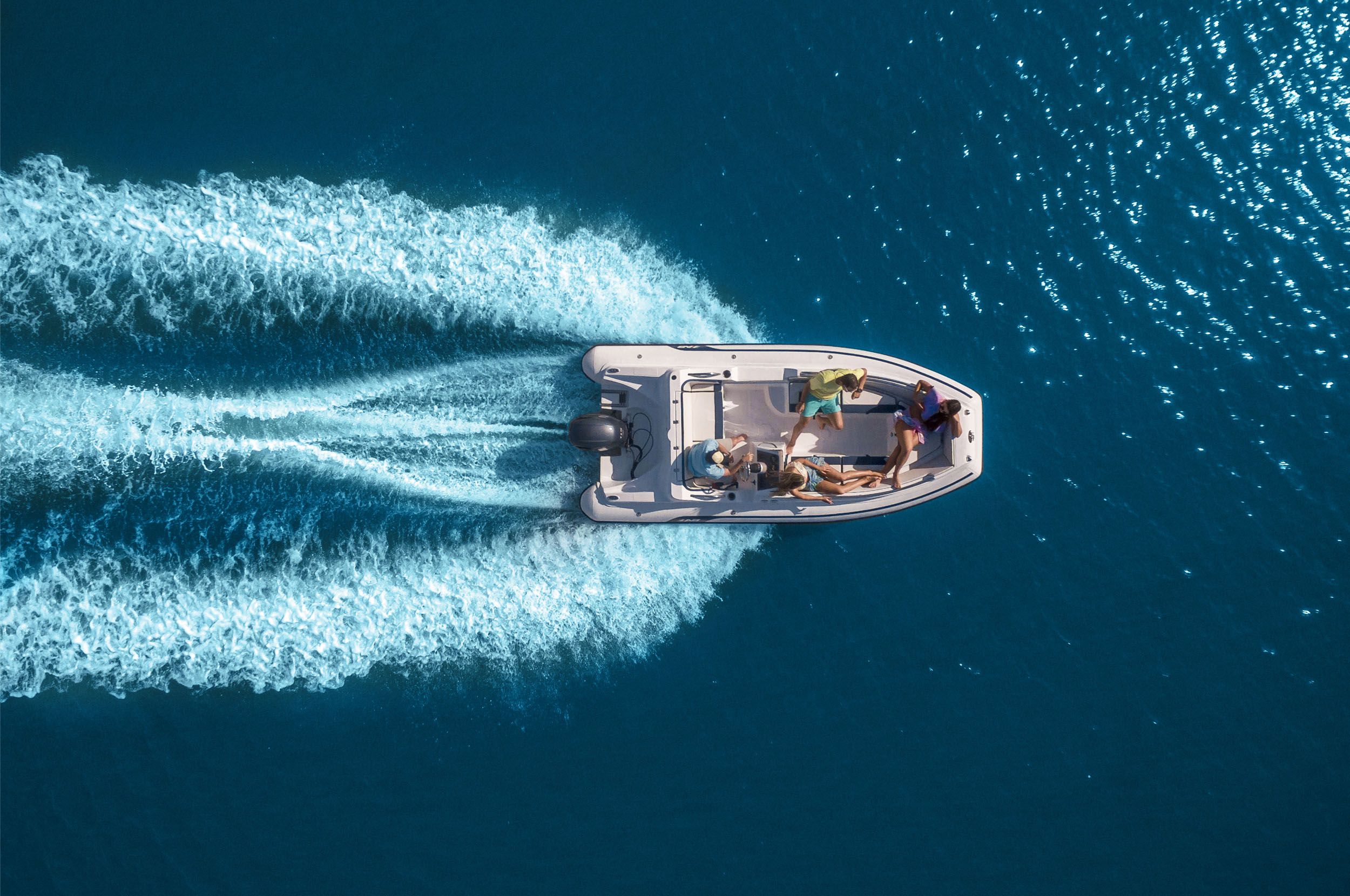

GALLERY
KEY FEATURES
SPECS
EQUIPMENTS

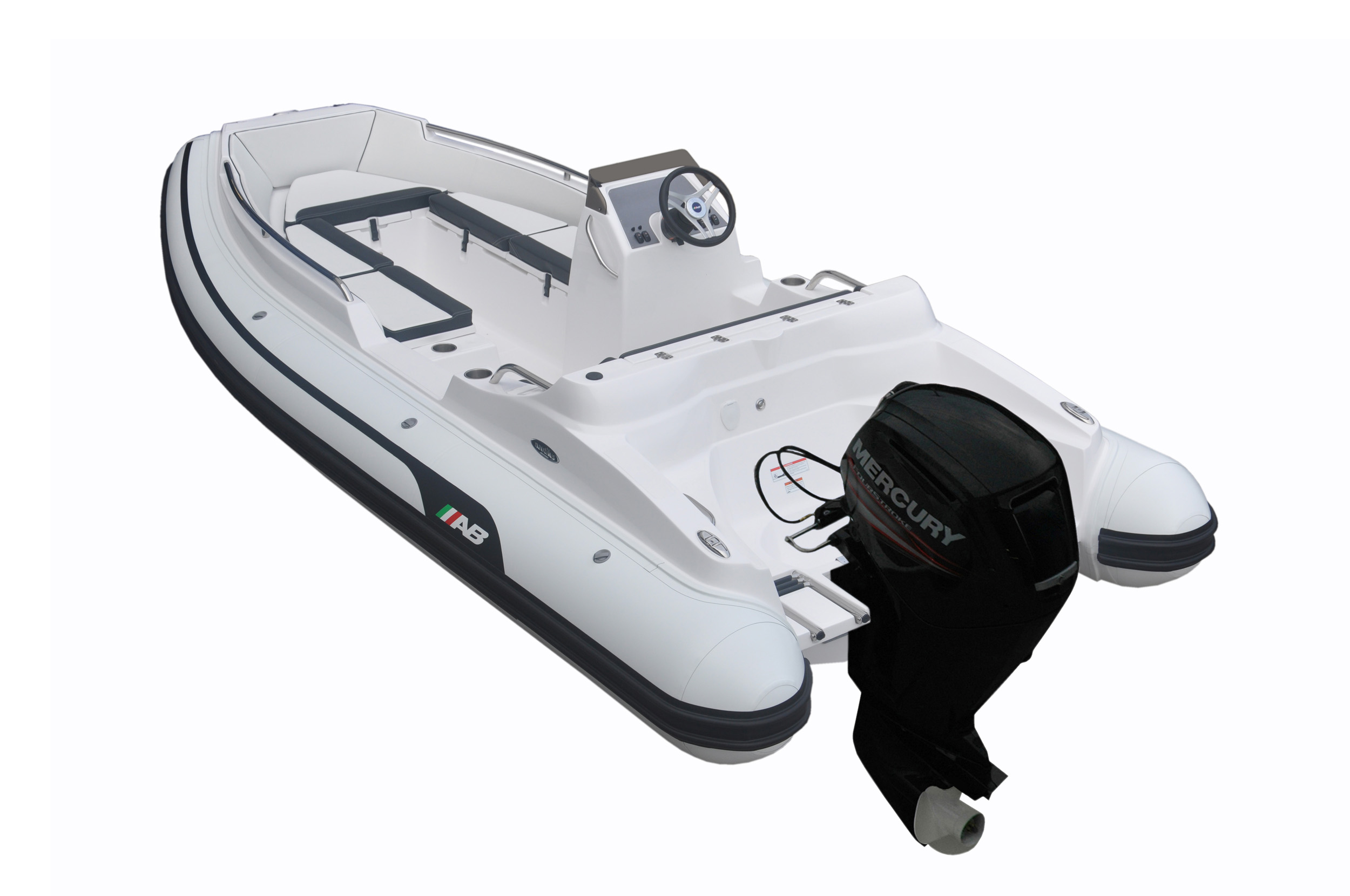

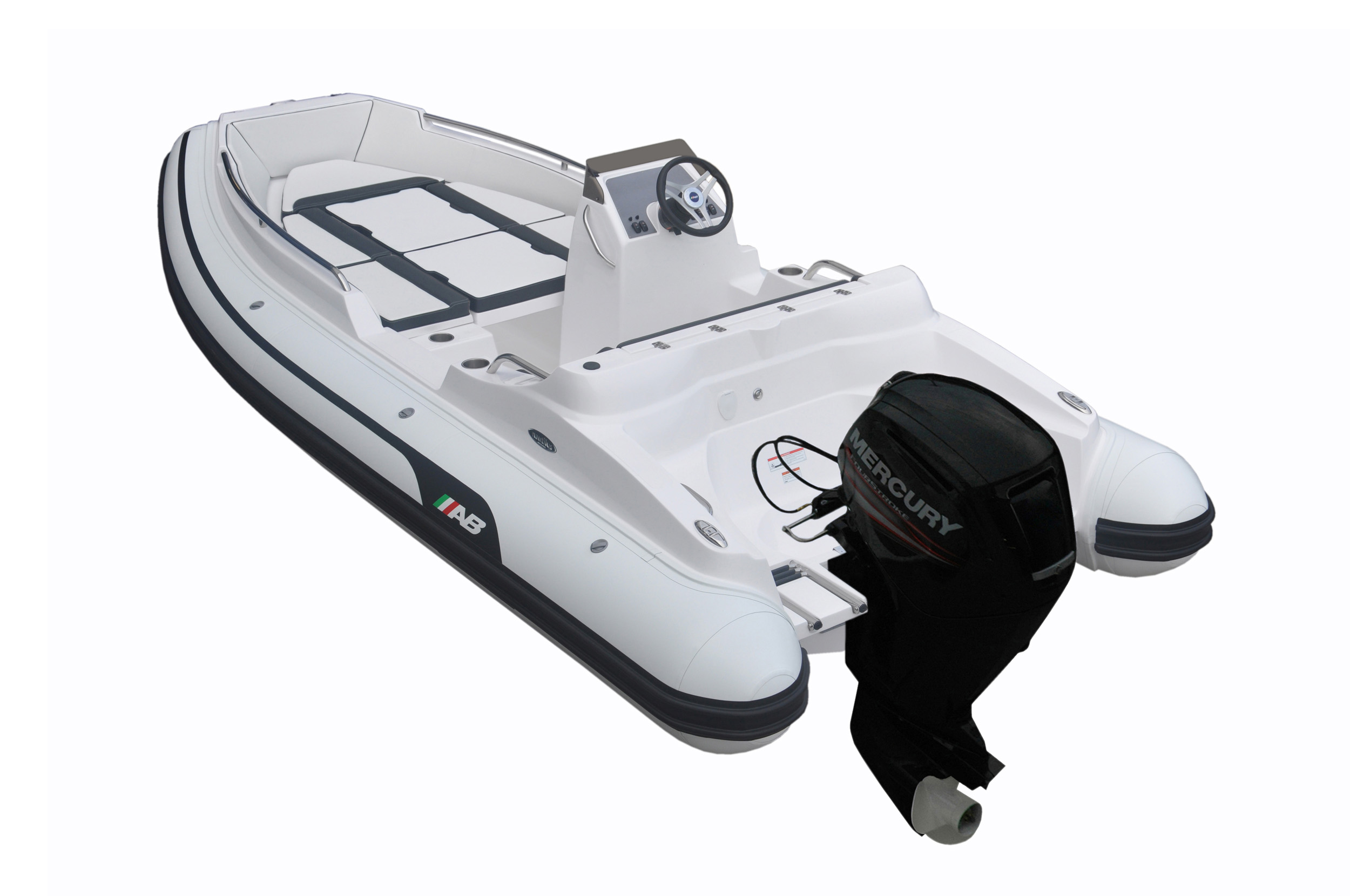

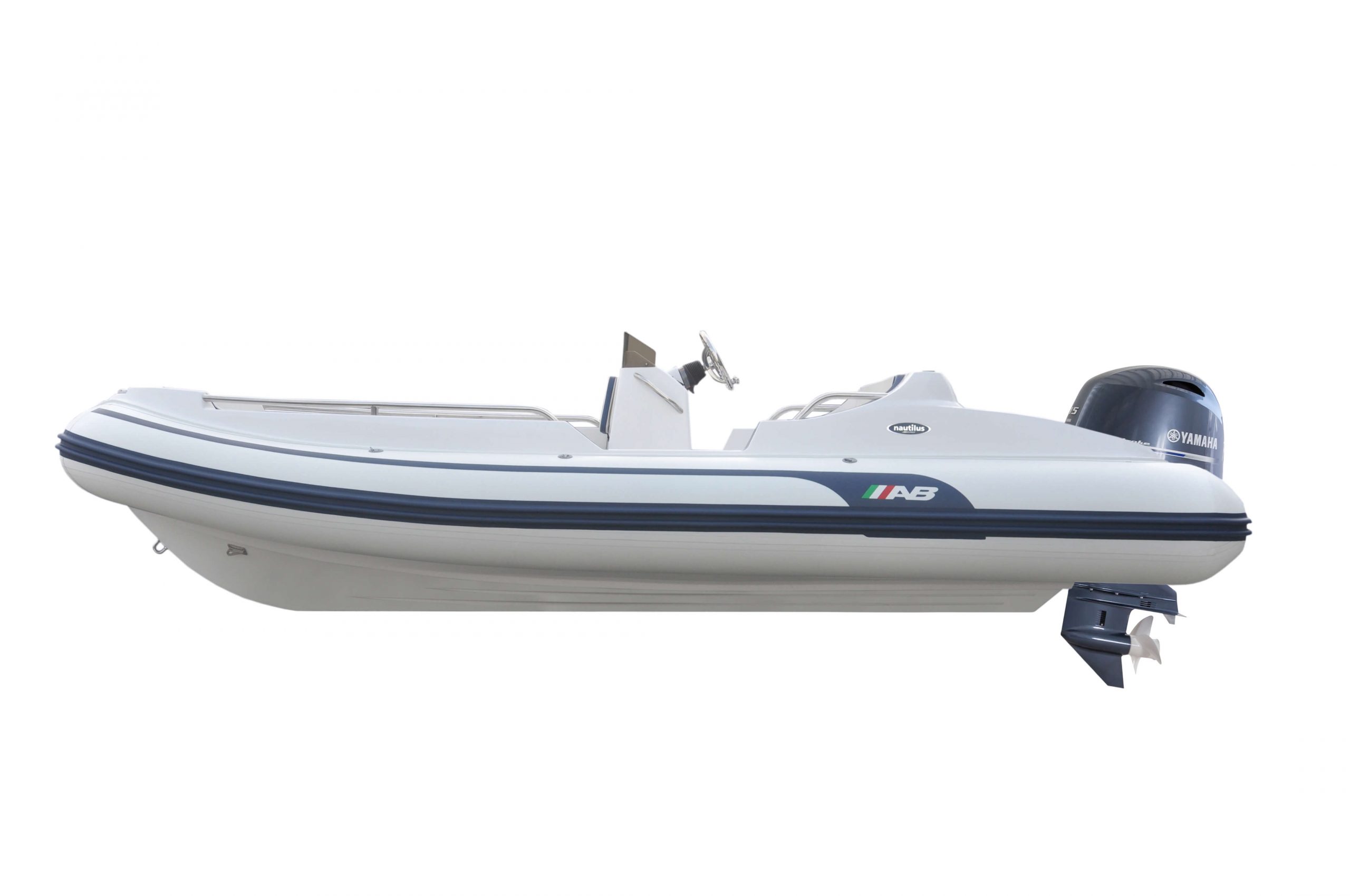

Nautilus 17 DLX

KEY FEATURES

  • Fresh Water System with Shower
  • Hydraulic Steering System and SS Wheel
  • Sporty Console Look Design with SS Hand Rail & Plexiglass Windshield
  • 2 SS Cup Holder
  • Molded-In Stern Seat & Cushion with SS Hand Rail & Large Storage
  • LED Navigation Lights
  • All Around LED Anchor Lights
  • Compartment Yacht Quality finish - easy Maintenance
  • SS Gas Springs for easy lifting
  • Larger Fuel Tank Capacity
  • Sunbed
  • Rigging Included
  • "V" Hull
  • NMMA Certified Aluminum Fuel Tank
  • More Storage Capacity
  • ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Boat Cover Available
  • Lateral Cushions for better comfort
  • Lateral Bow SS Rails for Added Safety
  • Reinforced (CSM) Fabric Handles
  • Custom Colors Upon Request

SPECS

Overall length

17' / 5.18m

Overall Beam

8'1" / 2.46m

Inside Length

13'1" / 4.00m

Inside Beam

4'5" / 1.35m

Tube Diameter

20" / 0.51m

Number of Chambers

5

Person Capacity

10

Weight

1250lb / 568kg

Recommended HP

90hp / 67.1kw

Maximum HP

115hp / 85.8kw

Shaft length

20’’ / 50,8cm

Fuel Built-in Tanks

33 gal / 125 lt - EPA compliant fuel tanks, 7% reduction approx.



Water Built-In Tanks

10 gal / 38 lt

RDC Design Category

C

STANDARD EQUIPMENT

Hand Laid Fiberglass Deep “V” Hull
Stringer System Laminated into Hull
Diamond Shape Non-skid Deck
Integrated Marine Grade Aluminum Fuel Tank (EPA compliant fuel tanks, 7% reduction approx.)
Marine Grade Aluminum Water Tank with Pump and Shower
Plastic External Transom Plate
Aluminum Internal Transom Plate
Splash well, Draining
Bow Rider Seating Style
One All Integrated Deck with Bow Front & Lateral Closed Cell Cushions
Solid Double Rub Rail
Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
Orca (CSM) Five Layer Coated Fabric
Hand Pump
Maintenance Kit
Owner's Manual
Fully Upholstered Seating – Spradling ®
Port Boat Entrance Step with Diamond Shape Non-Skid

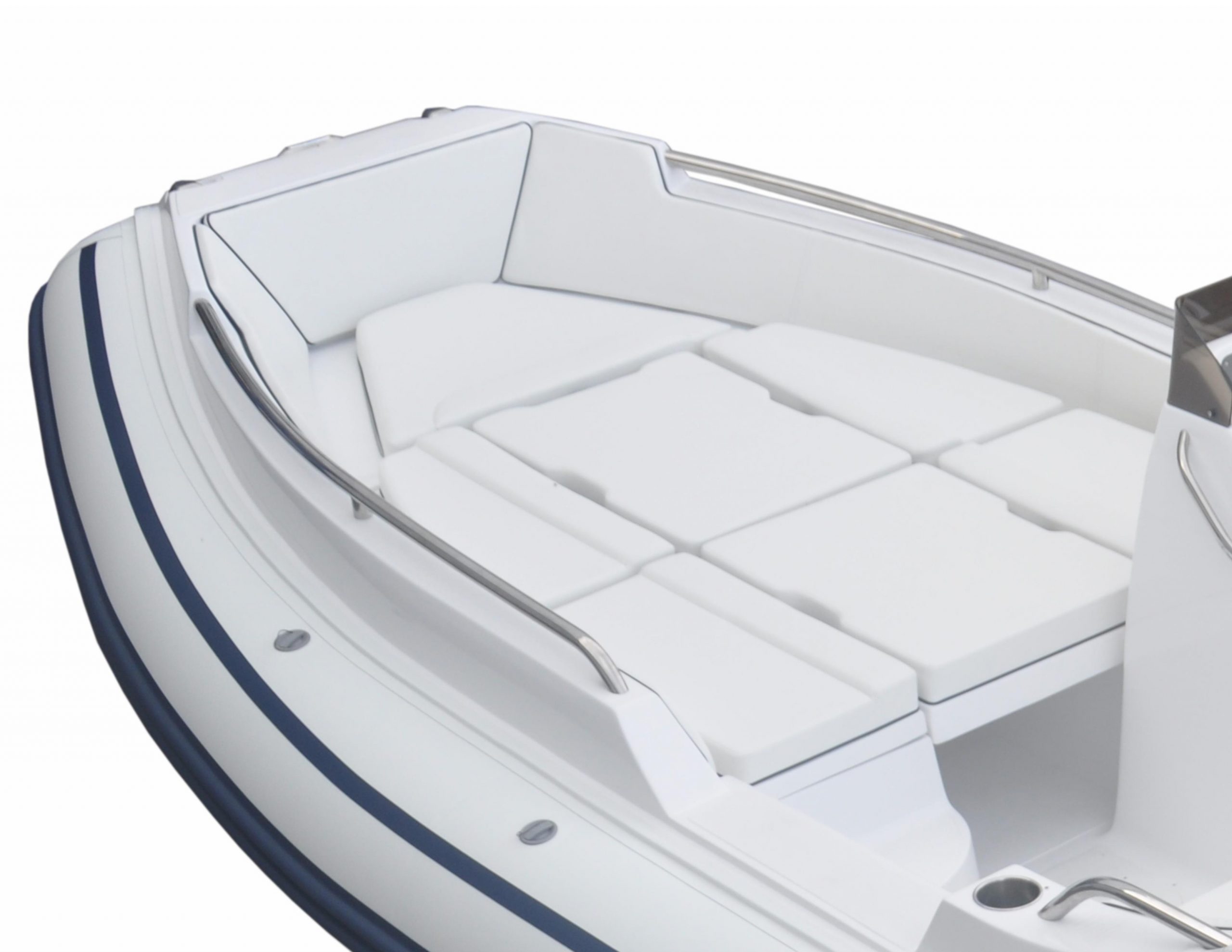

Bow Sunbathing Bed
Integrated Fiberglass Console
Sporty Console Look Design with SS Hand Rail & Plexiglass Windshield

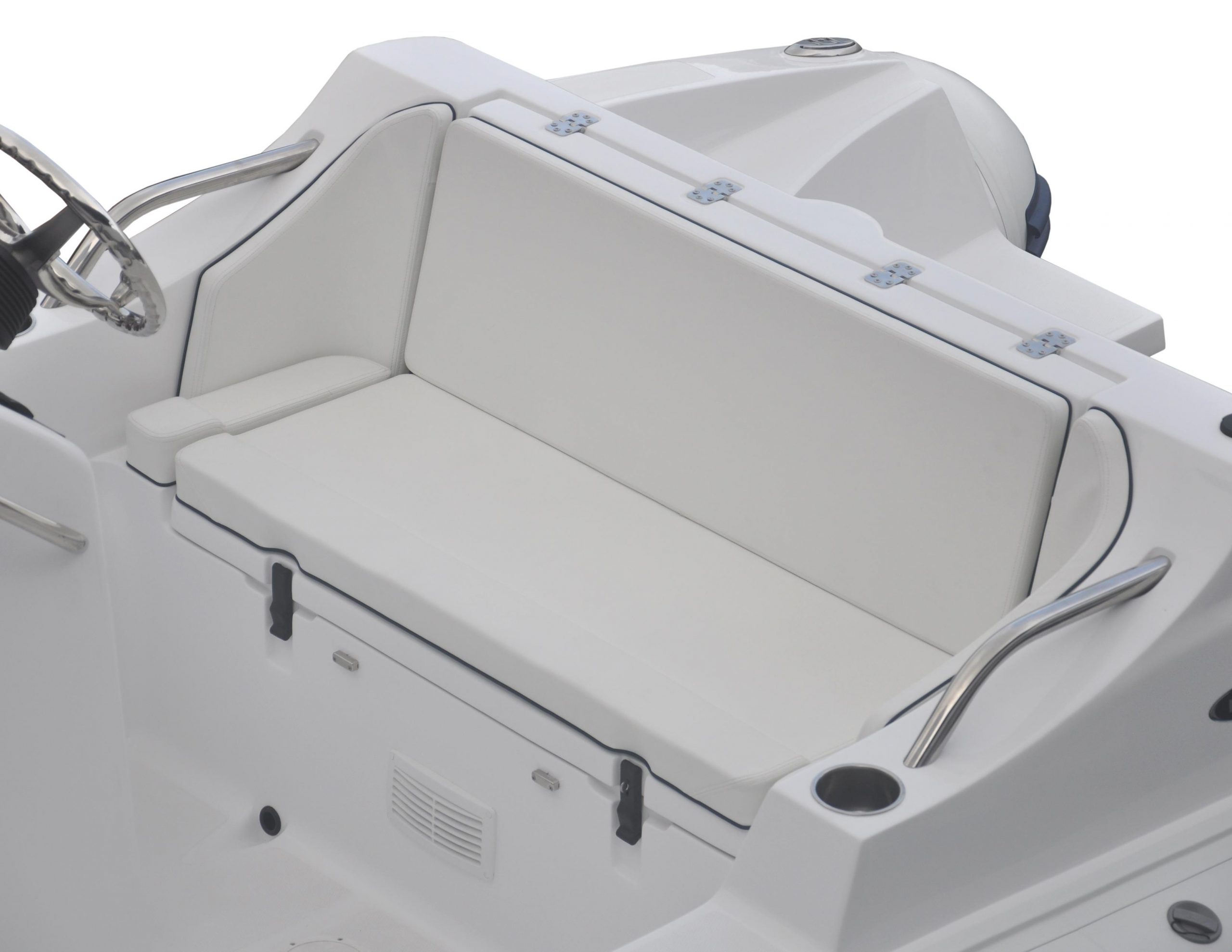

Molded-In Stern Seat & Cushion with SS Hand Rail & Large Storage
2 SS Cup Holders
2 Port, 2 Starboard Seats with Coolers and/or Lockers with Cushion
2 Deck Drains
Hull Drain with Plug

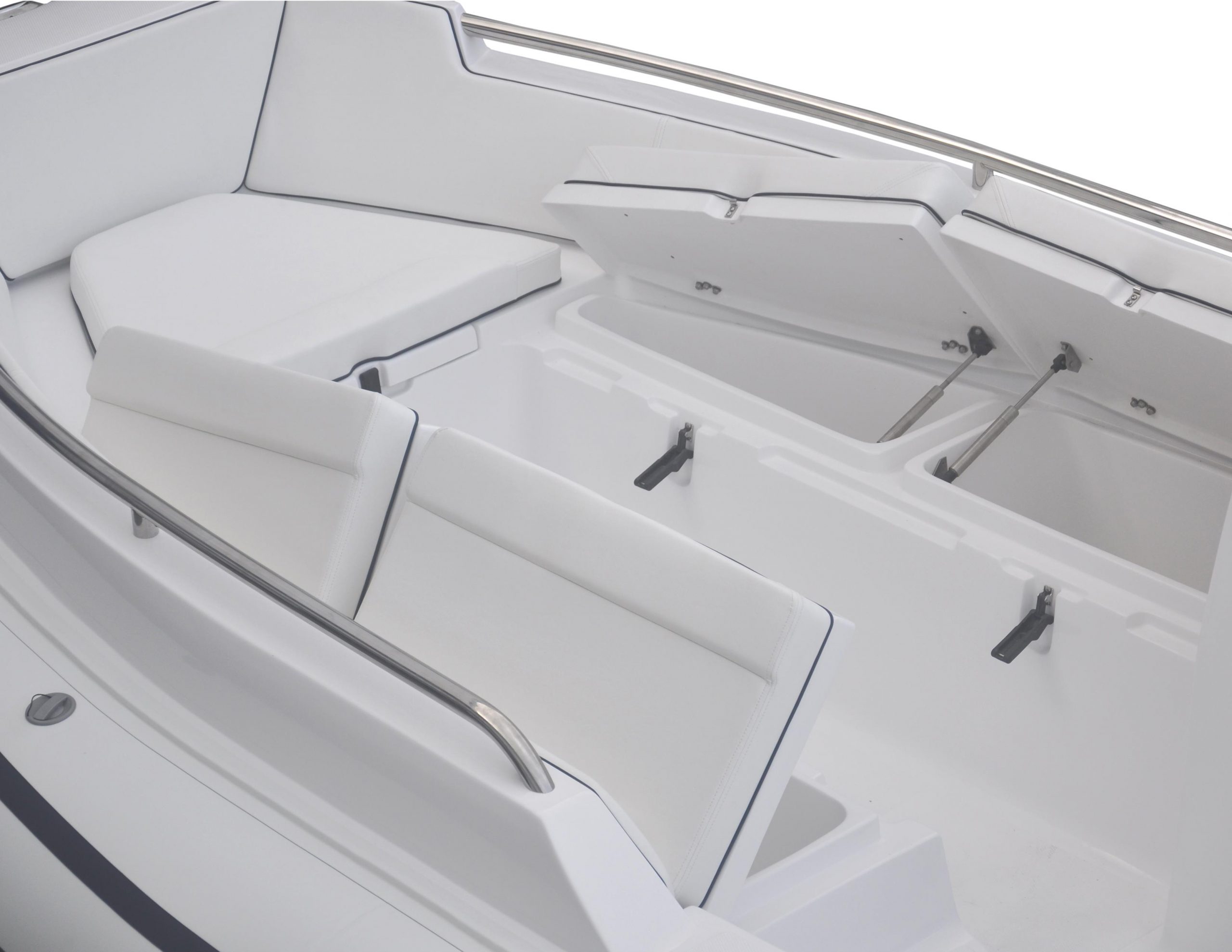

Bow Locker/Seat
Bow Hatch Cushion
Console Front Access Lid
Bow Step with Fold Down Stainless Steel Cleat & LED Navigation Lights
360° White LED Anchor Light Pole

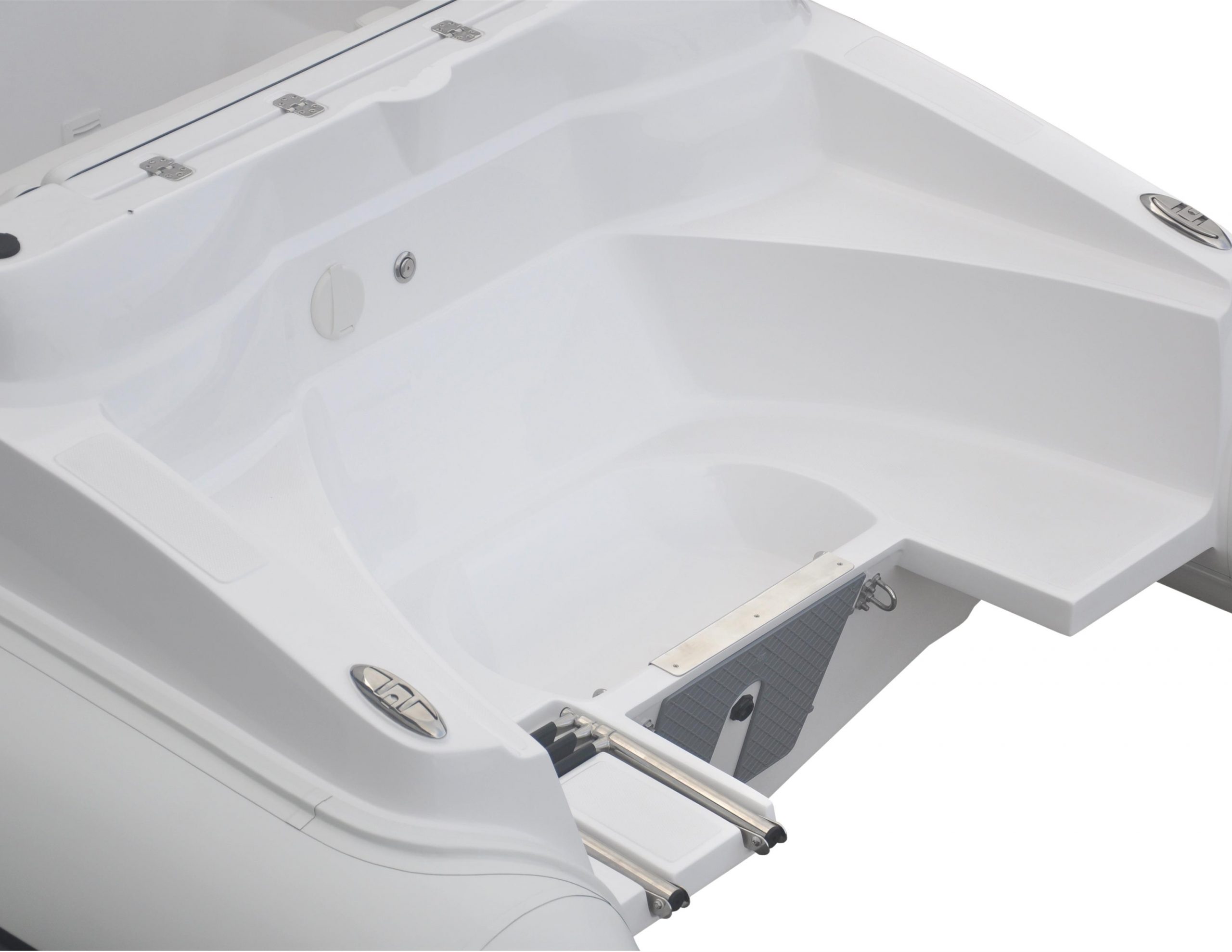

Ample Stern Platform with Recessed SS Ladder & SS Retracting Cleats
3 Stainless Steel Davit Lifting Points

OPTIONAL EQUIPMENT

Stainless Steel Light Arch
Transom Ladder
Bimini Top
Chock Set
Boat Cover
Console Cover
Lifting Harness
Teak Floor
CD/Radio System
Compass
GPS
VHF Package
Rod Holders
Stainless Steel Ski Tow
