LIGHTWEIGHT FIBERGLASS CONSOLE TENDERS

Our most compact, practical and comfortable sport console tender.

The 10 VSX is the newest boat in the AB Inflatables’ fleet! We rewrote the book on light weight economy console tenders with this one. Based on the roomy open Navigo 10 VS tender, with the driest ride in the industry, we have added molded in cushioned seating for 4 adults. This feature packed boat includes all the necessary equipment. Features include ORCA® CSM fabric, LED navigation lights, bilge pump, stainless steel steering wheel and grab handle, concealed stowage in bow locker, center console and flip open rear seat. The modest weight is a manageable 262 lbs. Four stainless steel davit lifting point complete this versatile package.

GALLERY
KEY FEATURES
SPECS
EQUIPMENTS

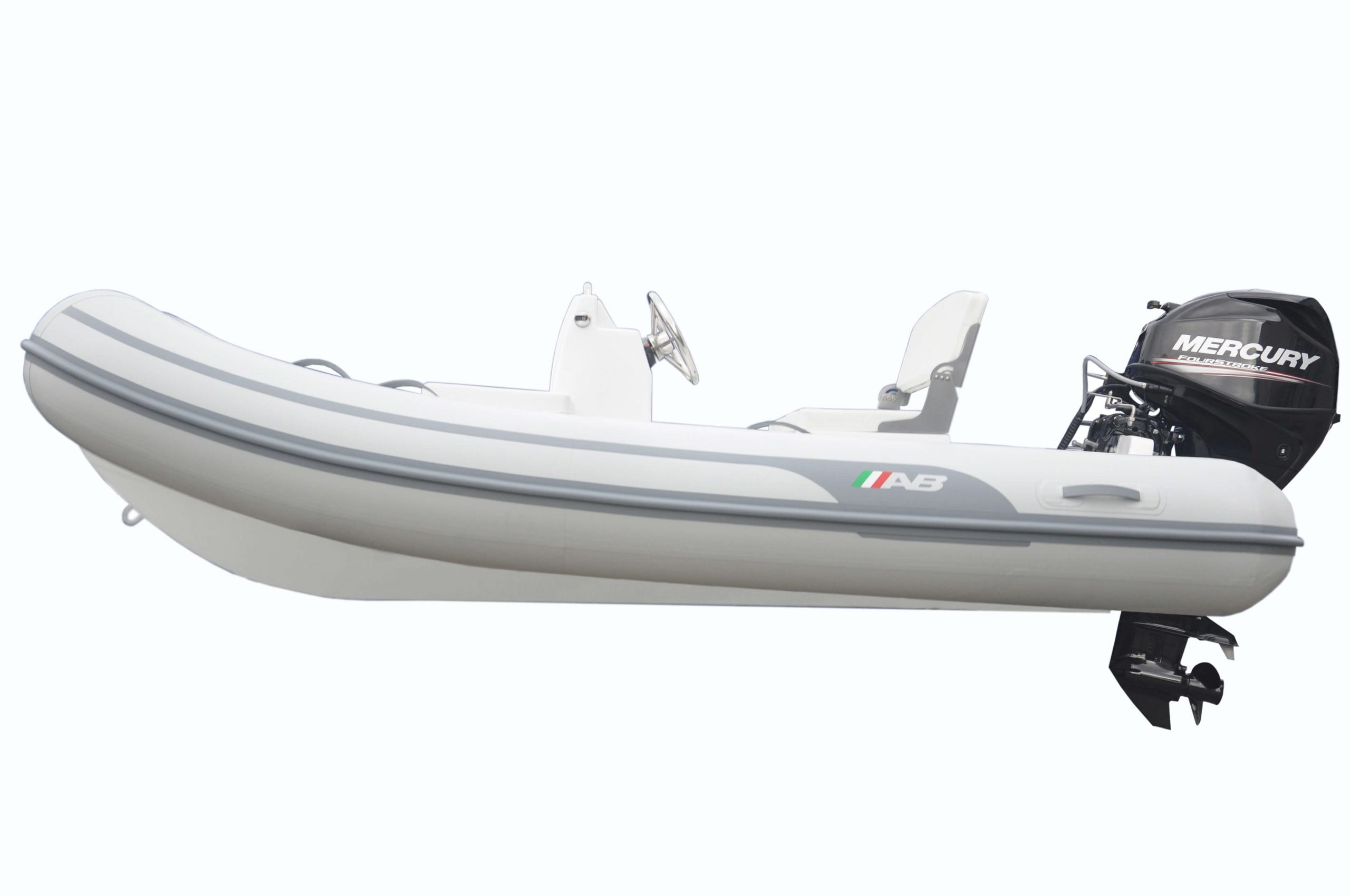

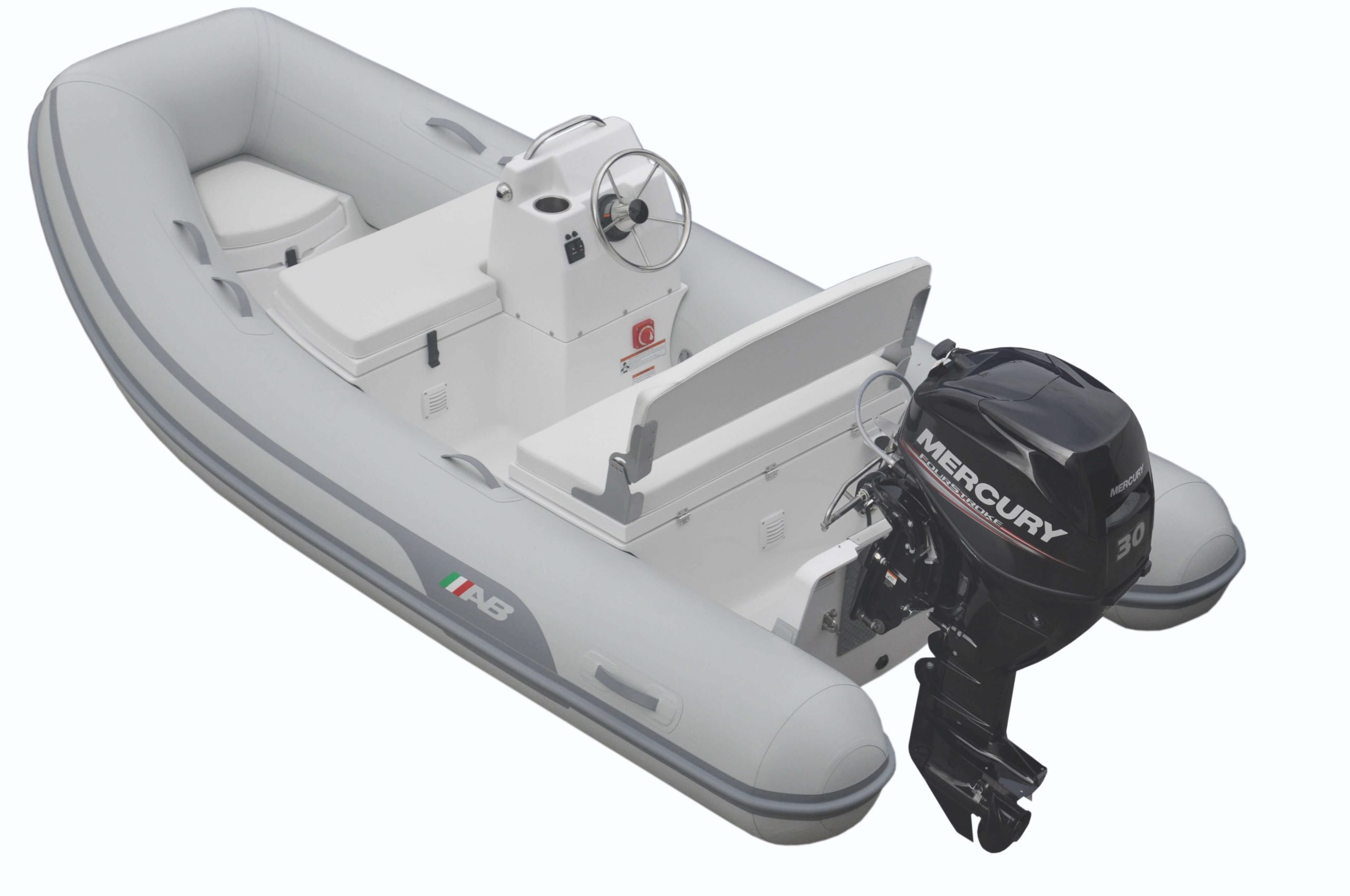

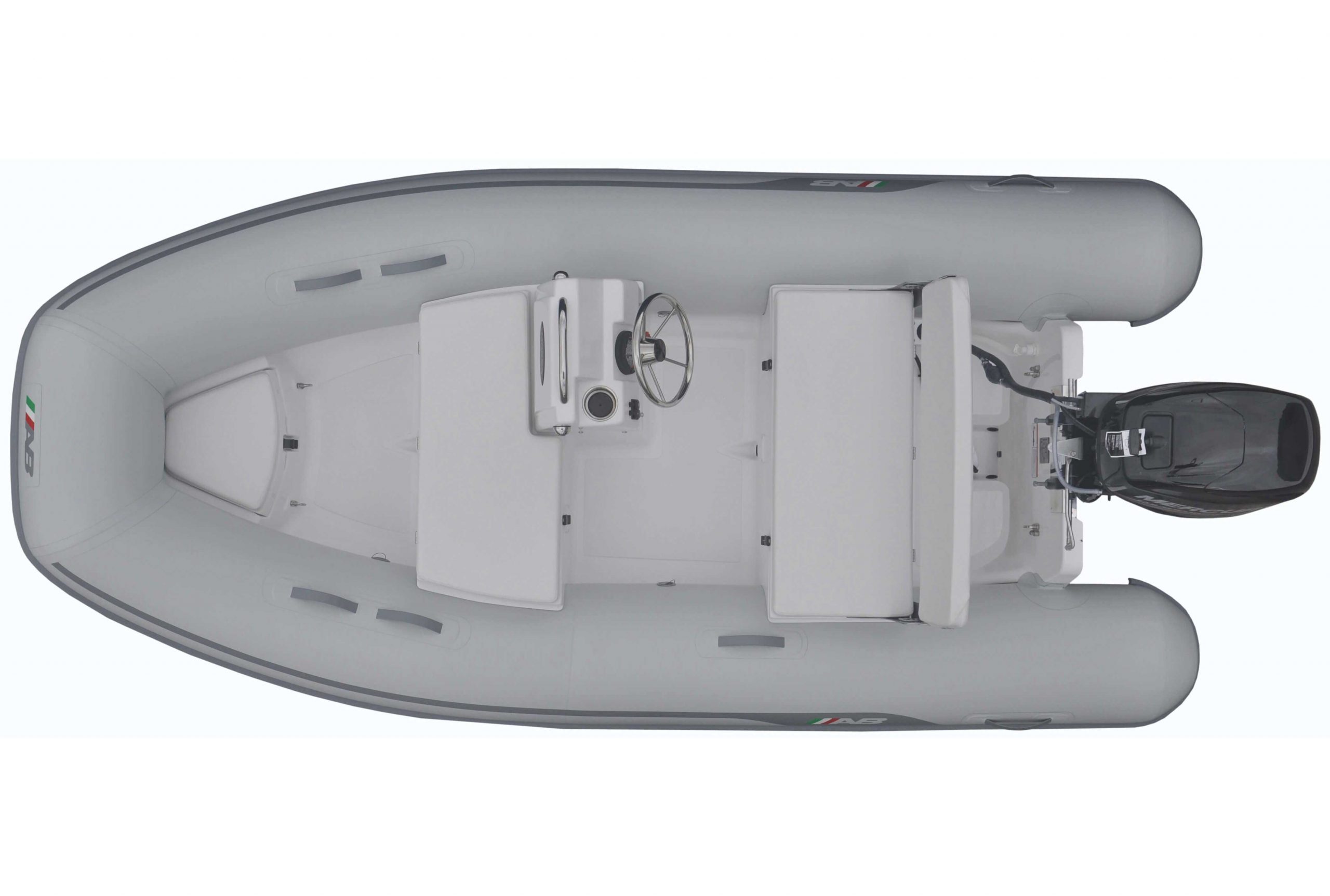

Mares 12 VSX

KEY FEATURES

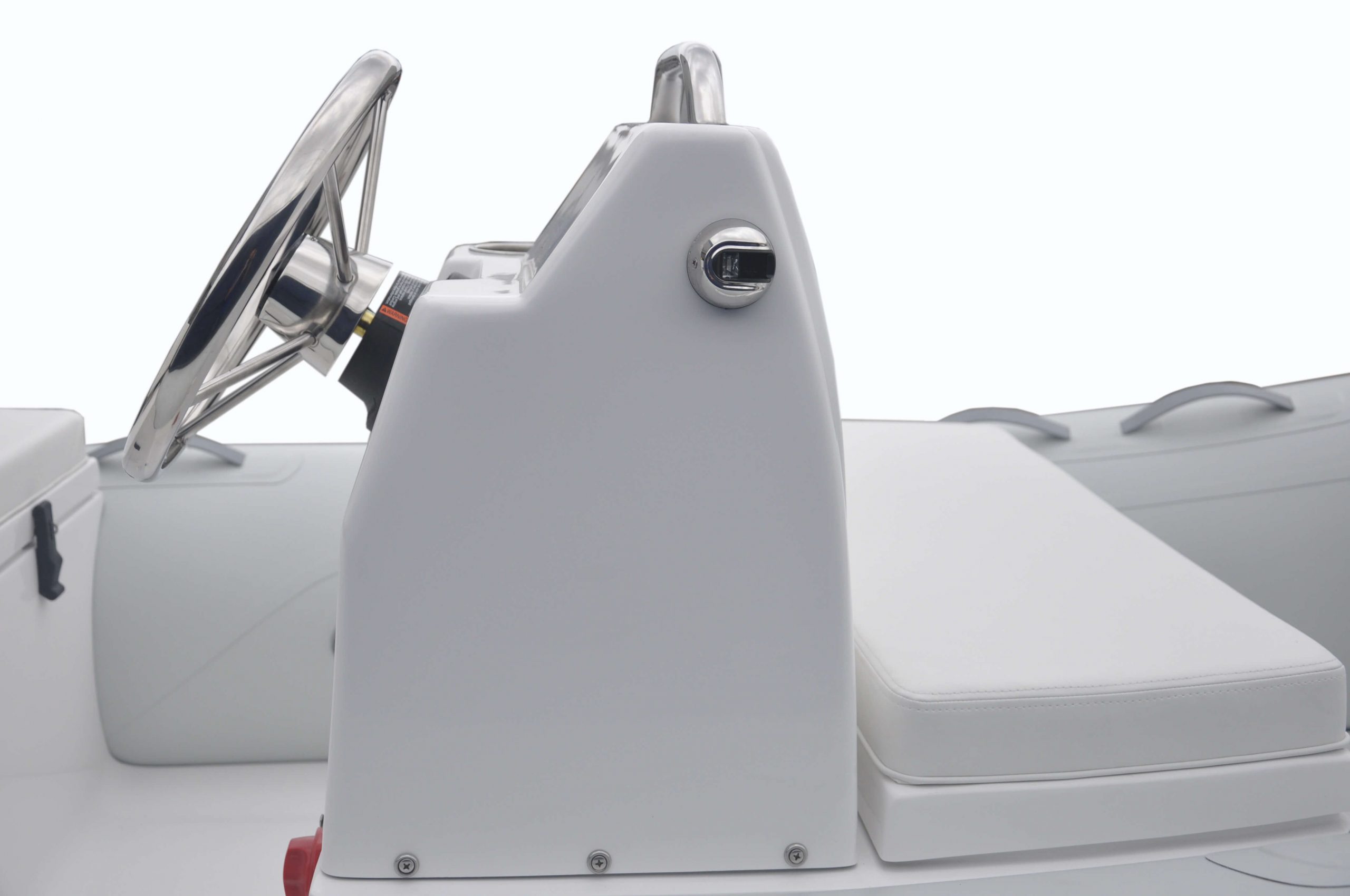

  • New Console with Cupholder & SS Grab Handle
  • Comfortable Console Access
  • Mechanical Steering System and Wheel
  • LED Navigation Lights
  • All Around LED Anchor Lights
  • "V" Hull
  • SS Gas Springs for easy lifting
  • Console Front Seat
  • Solid Rubrail
  • ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Boat Cover Available
  • Reinforced (CSM) Fabric Handles
  • Custom Colors Upon Request

SPECS

Overall length

12' / 3,66m

Overall Beam

6' / 1,82m

Inside Length

8' 9'' / 2,67m

Inside Beam

2' 9'' / 0,84m

Tube Diameter

18'' / 0,46m

Number of Chambers

3

Person Capacity

5

Weight

337lbs / 153kg

Recommended HP

30hp / 22,4kw

Maximum HP

40hp / 29,8kw

Shaft length

20’’ / 50,8cm

RDC Design Category

C

STANDARD EQUIPMENT

Hand Laid Fiberglass Deep “V” Hull
Stringer System Laminated into Hull
Diamond Shape Non-skid Deck
Plastic External Transom Plate
Aluminum Internal Transom Plate
1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
1 Port Inside Transom Orca (CSM) Fabric Handles on Tubes
2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes
Raised Single Rub Rail
Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
Orca (CSM) Five Layer Coated Fabric
Hand Pump
Maintenance Kit
Owner's Manual
Closed Cell Foam Upholstery

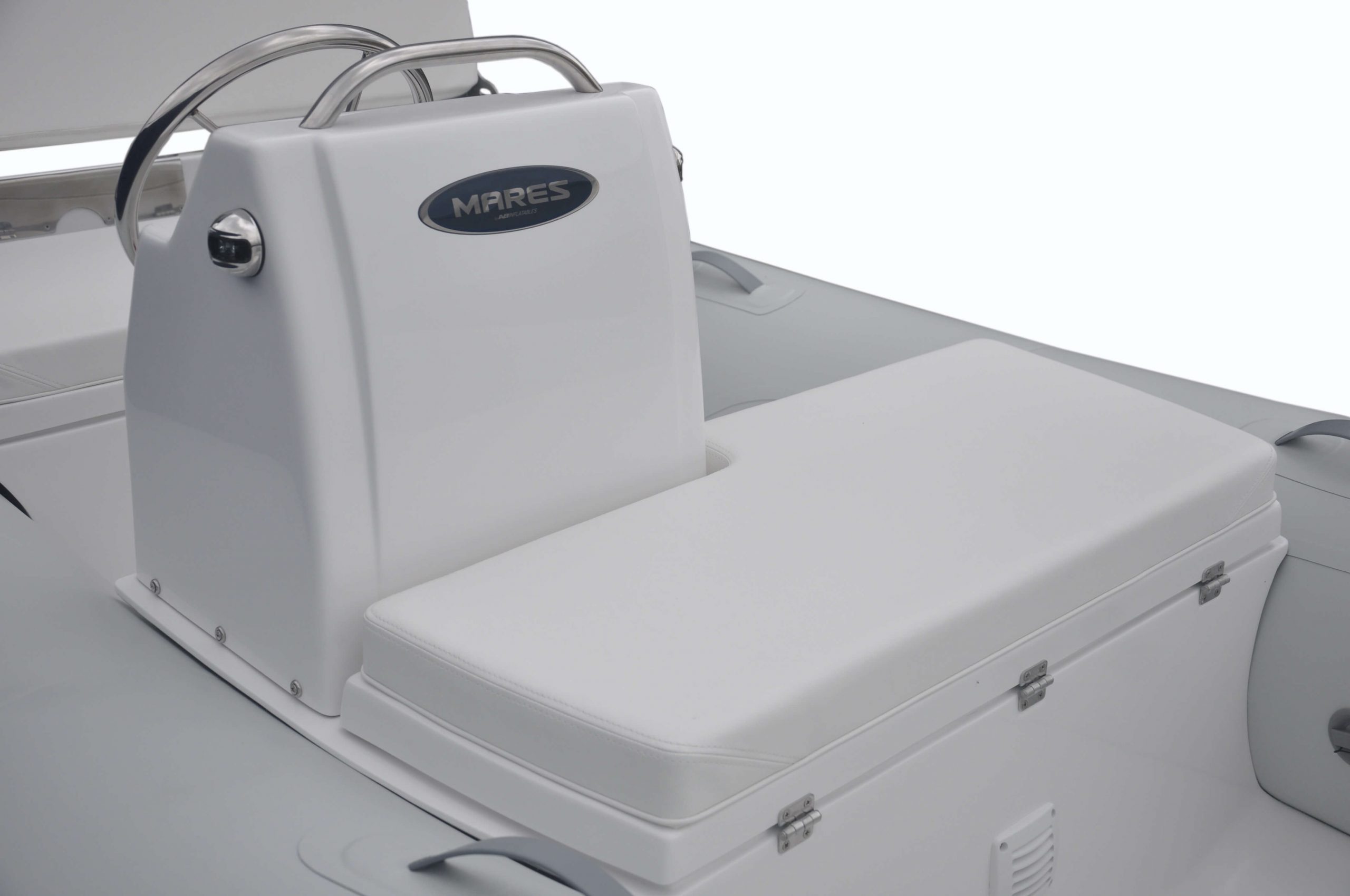

New Integrated Fiberglass Console with Cupholder, Lateral & Forward Seat with Cushion

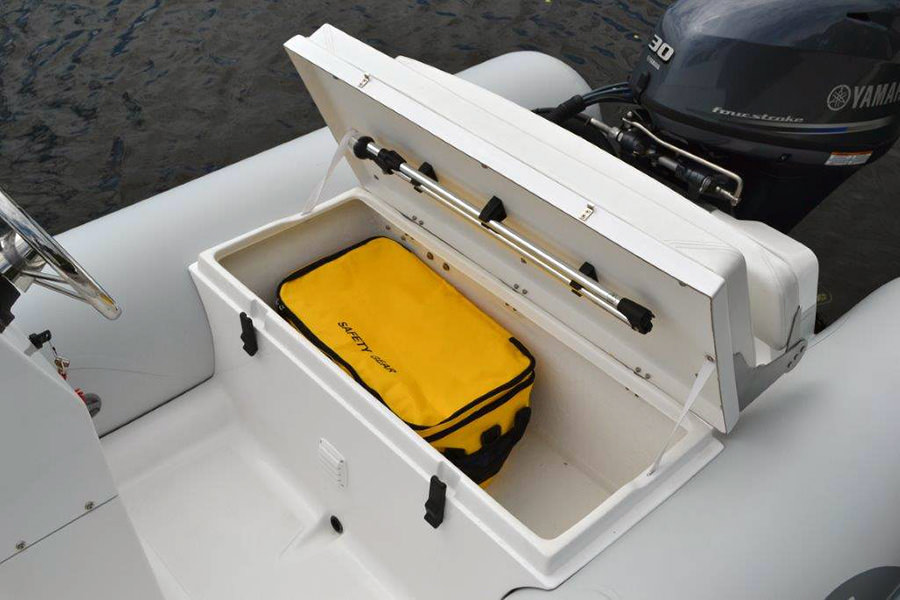

Integrated Stern Seat with Storage
2 Deck Drain

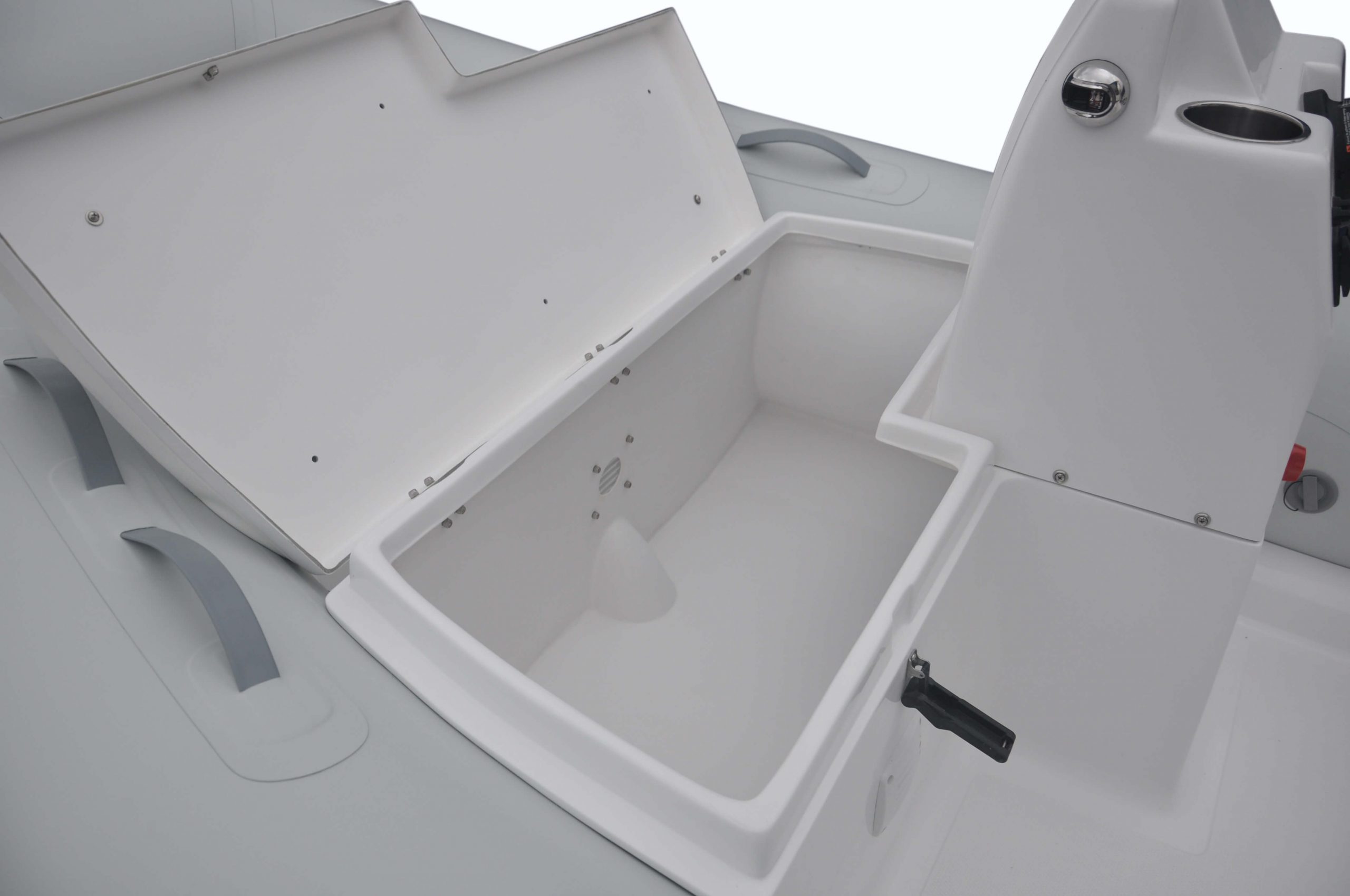

Bow Locker/Seat
Bow Hatch Cushion
Console Front Access Lid
LED Navigation Side Lights
360° White Light Navigation Pole
4 Stainless Steel Davit Lifting Points
Stainless Steel Bow Eye
Stainless Steel Tow Rings & Tie Downs
Stainless Steel Console Grab Rail
Hull Drain with Plug
2 Waterproof Rocker Switches with Circuit Brakers
Battery Box
Battery Switch
Fuel and Water Separator Filter
Automatic Bilge Pump 500 GPH
Mechanical Steering System

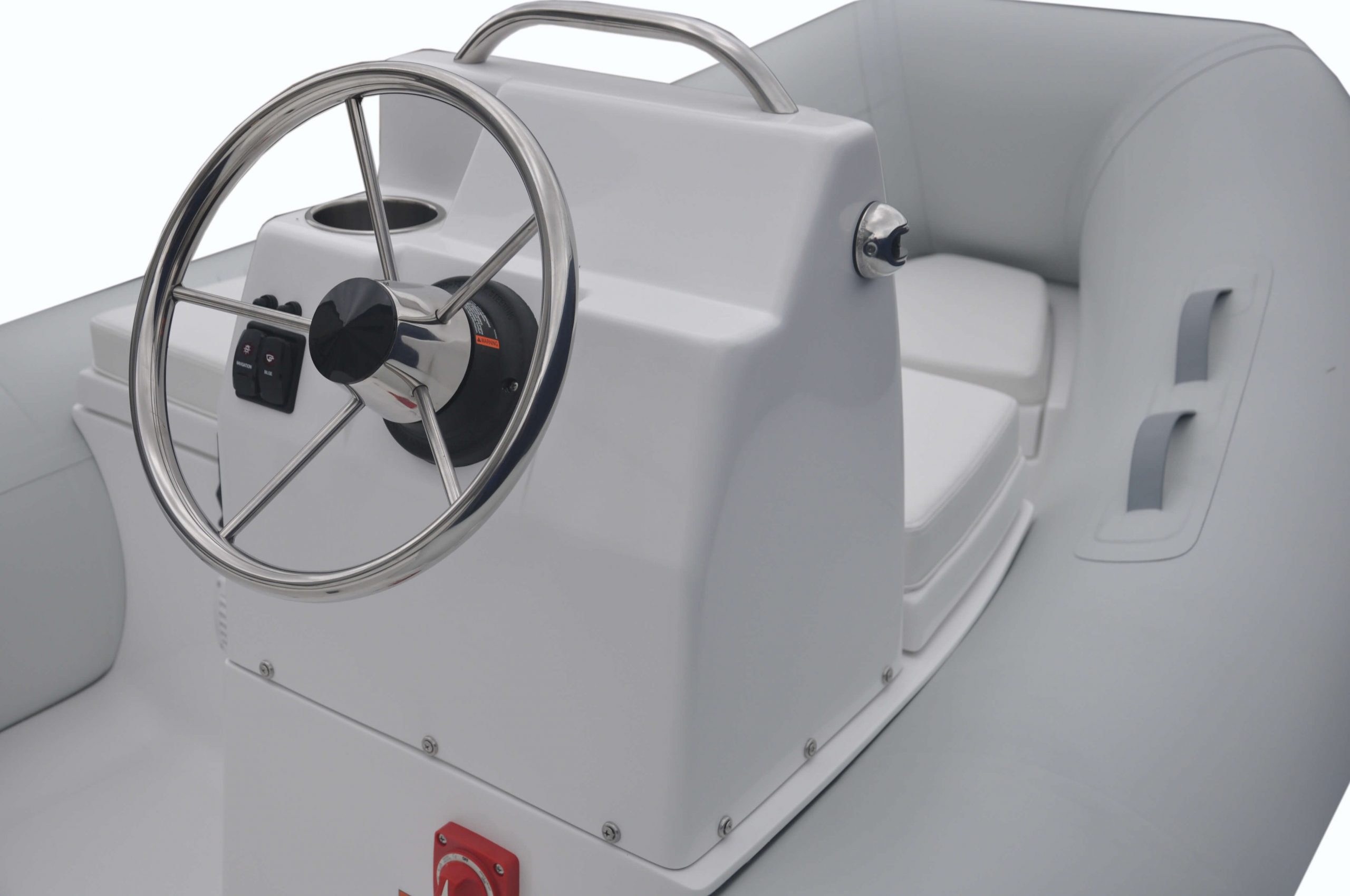

Stainless Steel Steering Wheel
Complete Tin Wiring & Heat Shrink Sealed Terminals
3 Layers Reinforced Seams

OPTIONAL EQUIPMENT

Bow Step with Fold Down SS Cleat
Bimini Top with Stainless Steel Tubing
Chock Set
Boat Cover
Console Cover
Lifting Harness
Teak Floor
CD/Radio System
Compass
GPS
VHF Package
Chaps
Lateral Fold Down SS Cleats
