ALUMINUM TENDERS

World-renowned, innovative design created to fit your needs.

Lammina is the first line of marine-grade, aluminum-hull inflatables to reach the U.S. market. The Superlight models, available in lengths 9,5 feet and under, feature a 2,28mm (0.090”) aluminum hull. The rest of the line, available in lengths 10 feet and larger, sports a 3,17mm (0.125”) aluminum hull. The transom thickness on models 8 to 10 feet is 3,17mm (0.125”) and from models 11 to 16 feet is 4,7mm (0.190”). These tough, lightweight and durable aluminum hulls will resist abrasions from rocky shores, coral and sandy beaches. The innovative design of the Lammina series cuts through wakes and chop with far less pounding. The result is an exceptionally dry, stable and superior ride.

GALLERY
KEY FEATURES
SPECS
EQUIPMENTS

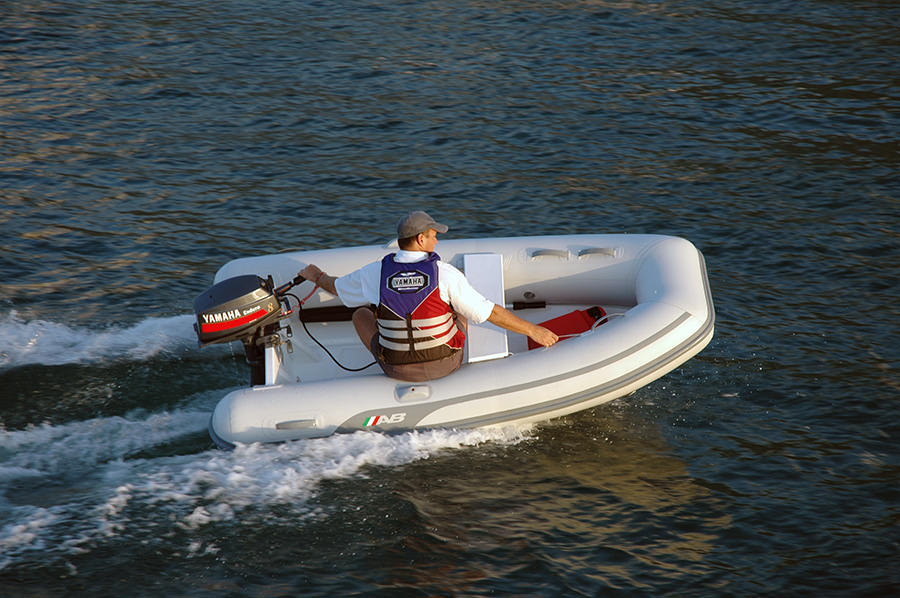

Lammina 9 AL

KEY FEATURES

  • Ventilation on Bow Locker
  • Large Square Transom Alum. Reinforced Base
  • More Payload Capacity
  • More Internal Area
  • Optional B.Locker - 3 Gal Portable F. tank
  • Aluminum Removable Rowing Seat
  • New Chrome Free - Advanced Pretreatment and Powder Coating Technology
  • Ultra High Quality Welding
  • Bow U bolt and lateral towing eyes
  • Single Solid Rubrail

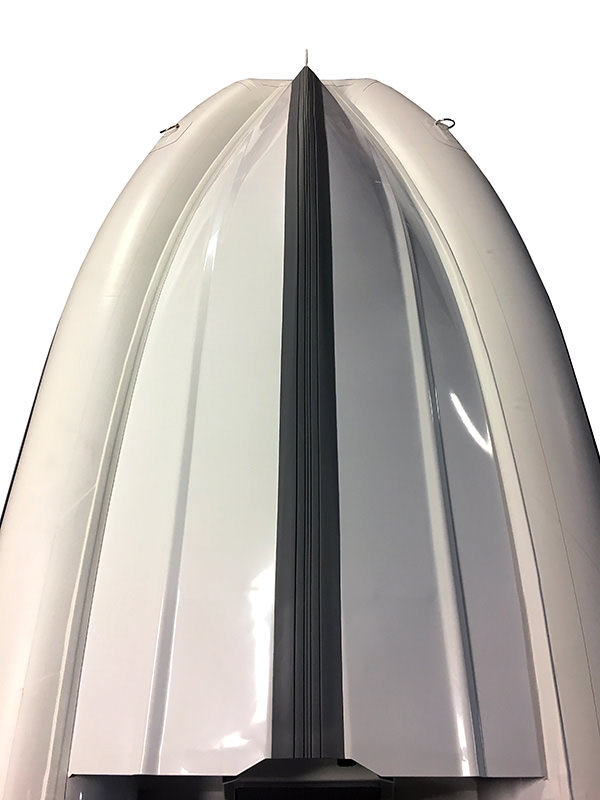

  • New Heavy Duty Keel Protector
  • "V" Hull
  • ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Dinghy Chap Available
  • Sunbrella Fabric Boat Cover Available

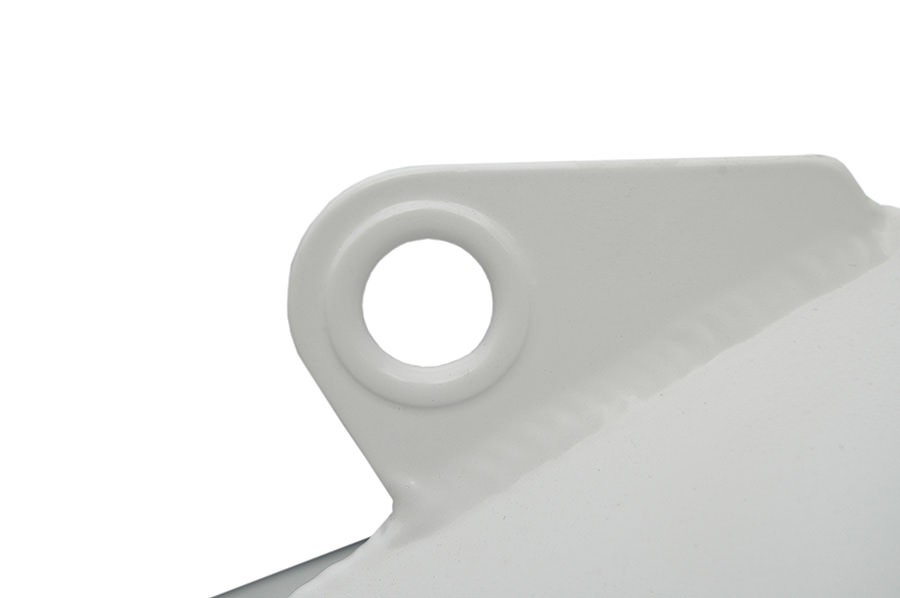

  • Reinforced Alum. Lifting Eyes with SS Rings
  • Internal Aluminum Plate with Security Lip
  • Reinforced (CSM) Fabric Handles
  • Non-skid Rubber Floor
  • Custom Colors Upon Request

SPECS

Overall length

9' 1" / 2.76m

Overall Beam

4' 9" / 1.45m

Inside Length

6' 3" / 1.90m

Inside Beam

2' 2"/ 0.66m

Tube Diameter

16" / 0.41m

Number of Chambers

3

Person Capacity

4

Weight

79 lb / 36kg

Weight with Bow Locker

86 lb / 39kg

Recommended HP

8hp/6.0kw

Maximum HP

10 hp / 7.5 kw

Shaft length

15" / 38.1cm



RDC Design Category

C

STANDARD EQUIPMENT

Deep “V” Marine Grade Aluminum Hull
Heavy Duty Transom Knee
Non-Skid Rubber Floor Panels
Plastic External Transom Plate
Aluminum Internal Transom Plate with Security Lip
Aluminum Bow Eye
3-4 Aluminum Davit Lifting Points
Deck Drain with Plug
Orca (CSM) Five Layer Coated Fabric
Raised Single Rub Rail
Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes
2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes
Removable Rowing Seat
Oarlock Base
Telescopic Oars with Aluminum Shaft
Paddle Holders
Hand Pump
Maintenance Kit
Owner's Manual
3 Layers Reinforced Seams
Rubber Protector on Full Length of Keel

OPTIONAL EQUIPMENT

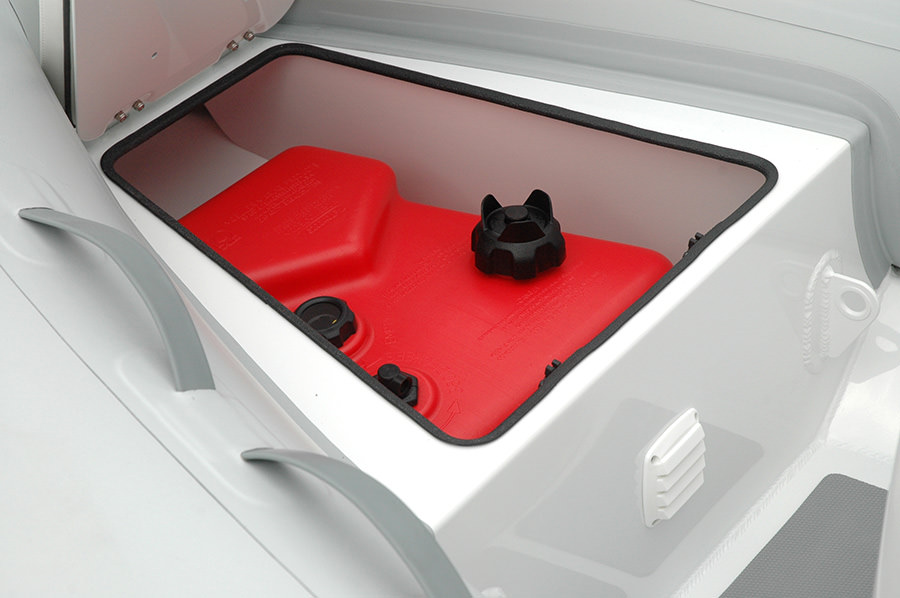

Bow Locker/Seat with Vent & Storage to Fit a 3 Gal Portable Fuel Tank
Tube Chaps
Boat Cover
Chock Set
Bow Step with Fold Down Stainless Steel Cleat
Lateral Fold Down Stainless Steel Cleat
